Exterior View
Working Width

23.6 in

Maximum Cutting Depth

6.7 in

Required Hydraulics

High Flow

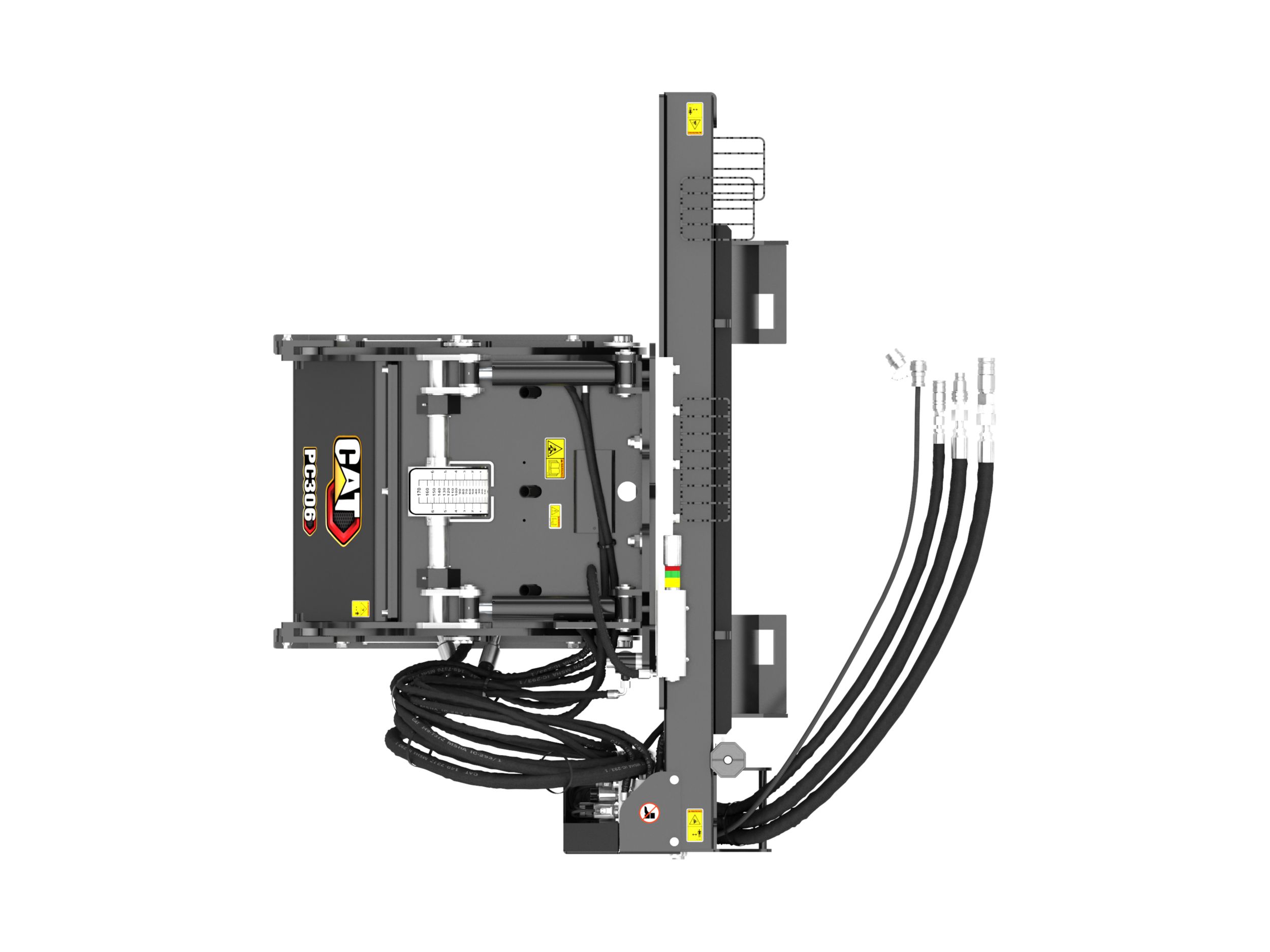

PC306 High Flow Cold Planer

ABOUT THE pc306 HIGH

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.

Add the PC306 HIGH FLOW Model to the Cart
Working Width
23.6in
Maximum Cutting Depth
6.7in
Required Hydraulics
High Flow
Overall Width
73.1in
Overall Length
49.1in
Overall Height
36.6in
Weight
2107.6lb
Optimal Hydraulic Flow
98-125 L/min (26-33 gpm)
Optimal Hydraulic Pressure
230-280 bar (3300-4000 psi)
Drum Speed
149 rpm
Optional Drum Widths/Depths
80/200, 150/200, 300/200, 450/200, 600/170 mm (3/8, 6/8, 12/8, 18/8, 24/7 in)
Tilt Angle Range +/-
8 degrees
Side Shift Travel
29.5in
Conical Bits
54
Standard Bit Type
All Purpose
