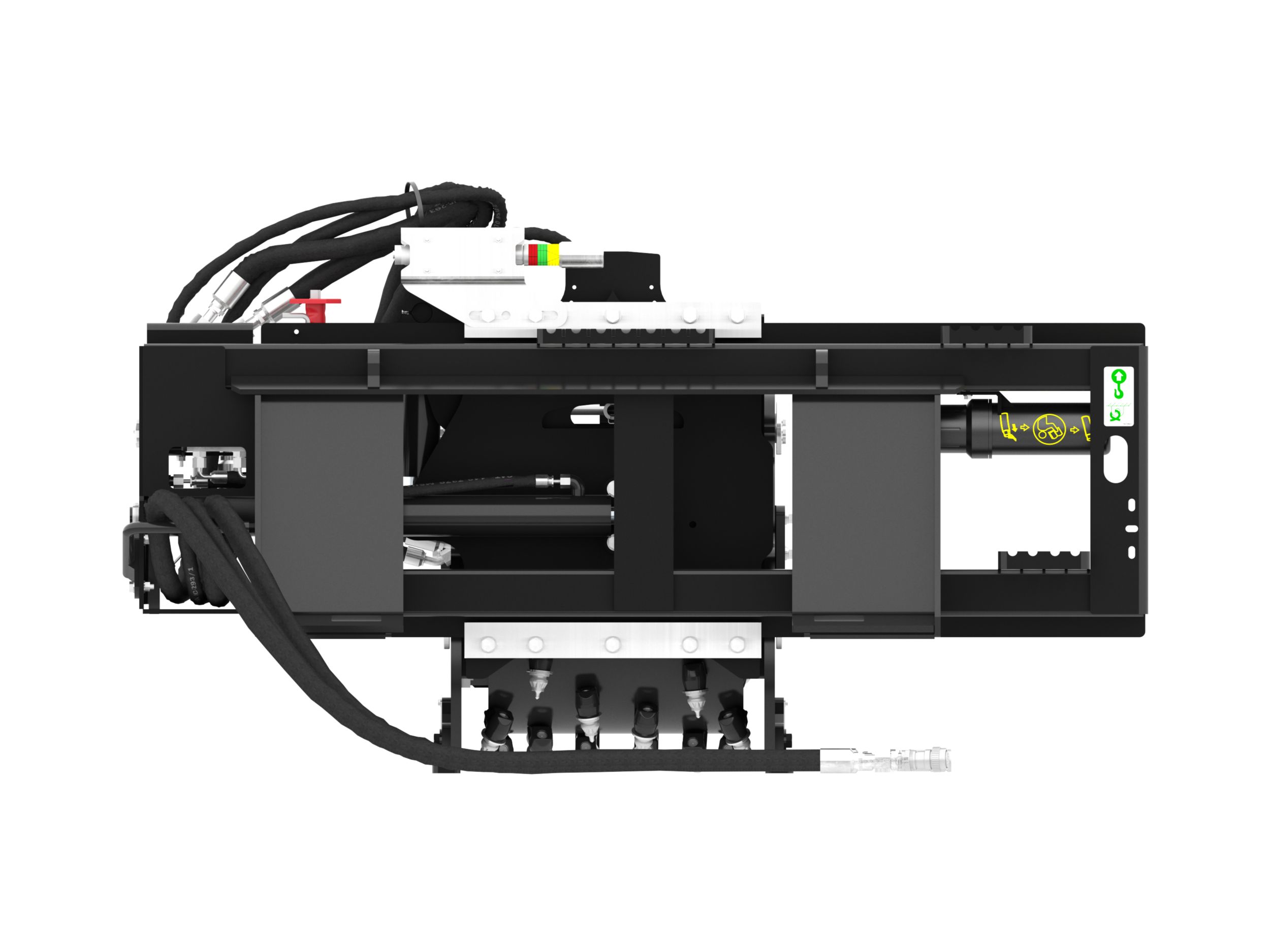

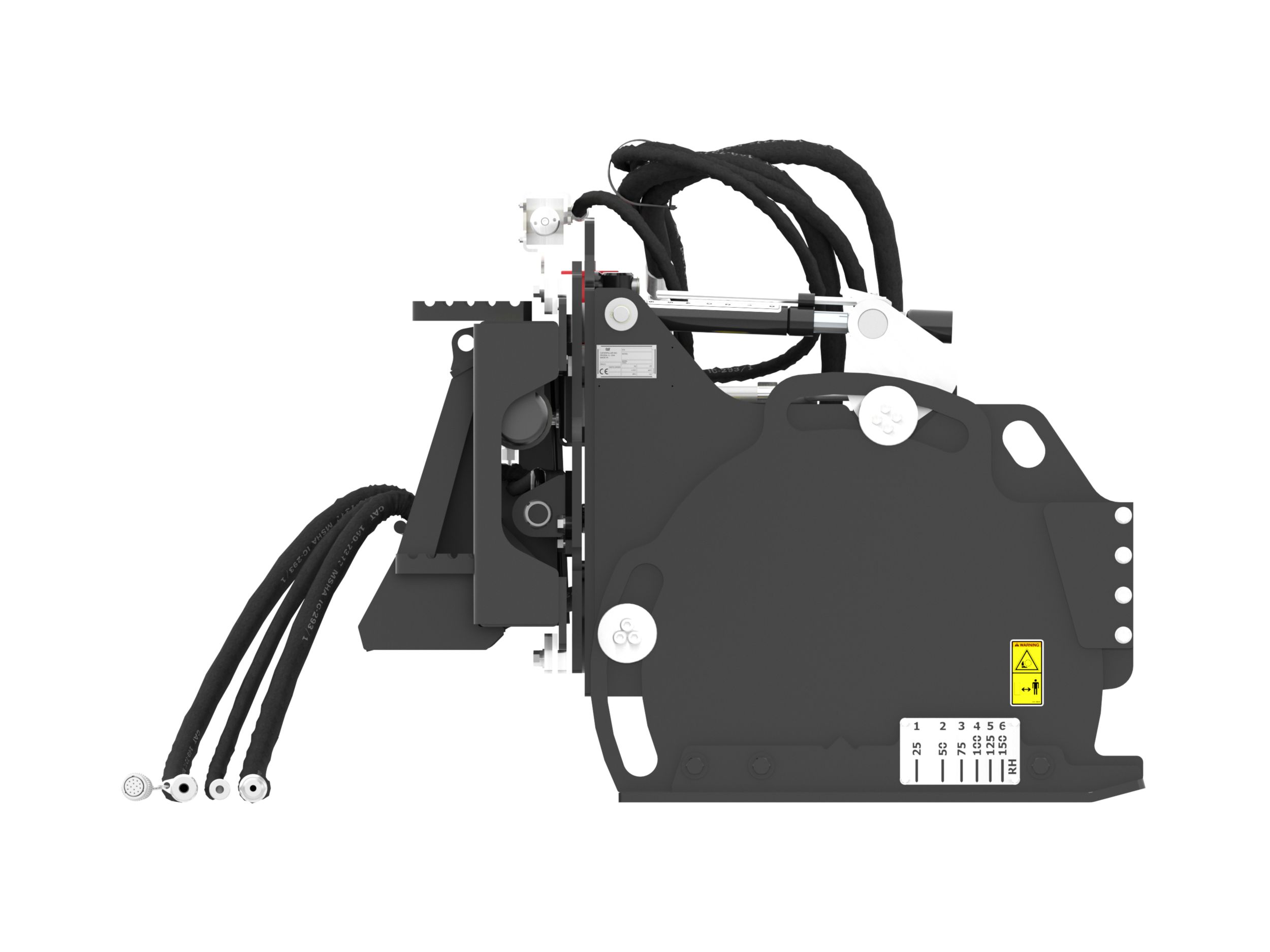

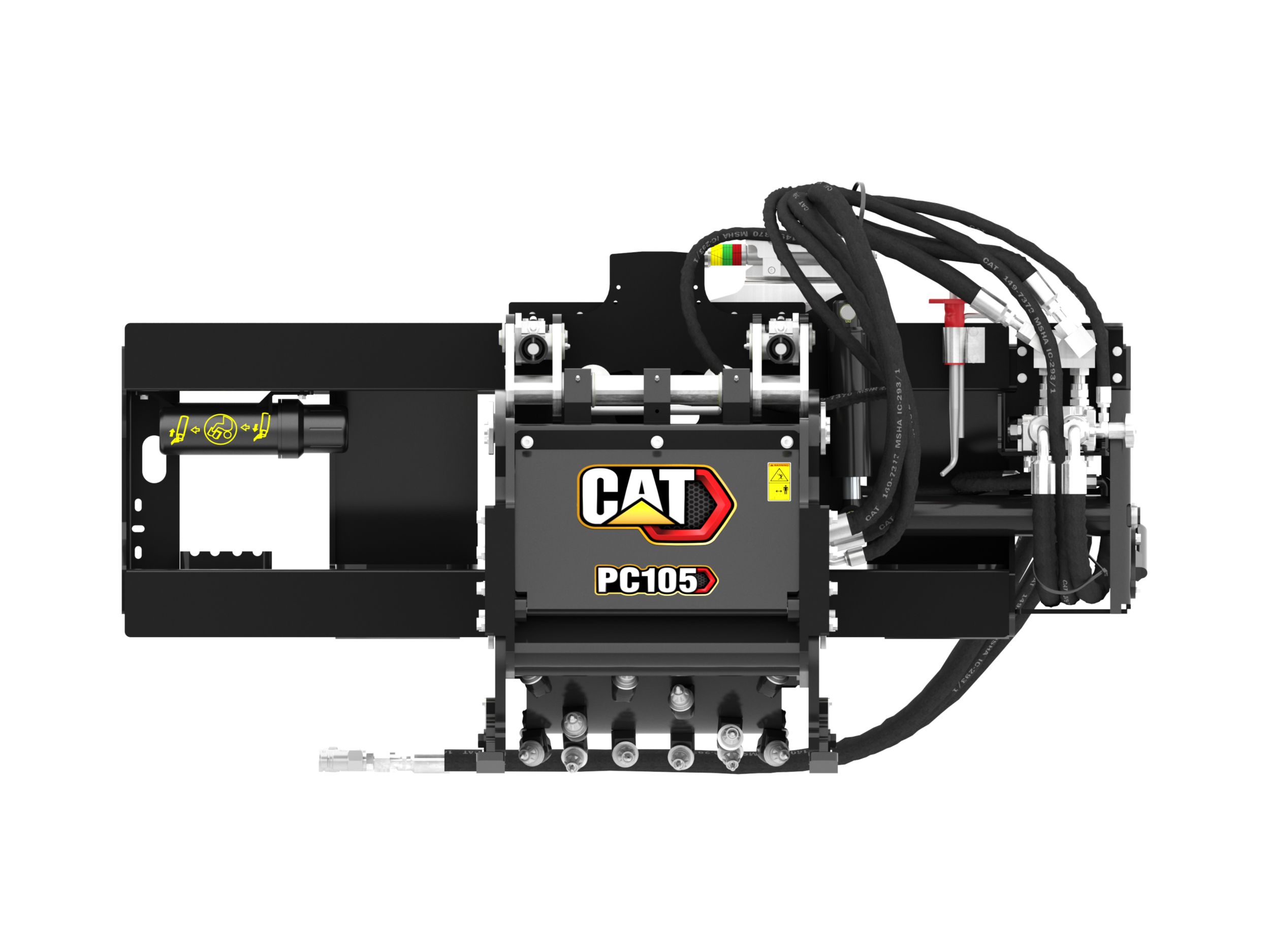

Exterior View
Working Width

17.7 in

Maximum Cutting Depth

5.9 in

Required Hydraulics

Standard Flow

PC105 Standard Flow Cold Planer

ABOUT THE pc105 STANDARD

Cat® Cold Planers are designed for small paving jobs in residential and commercial applications and are primarily used to economically restore asphalt and concrete surfaces. They are ideal for milling imperfections prior to resurfacing, removing deteriorated pavement, removing traffic lane stripes and jobs where the use of dedicated planers is limited. The Cat Cold Planers are designed for use on Cat Skid Steer Loaders, Compact Track Loaders, Compact Wheel Loaders and Backhoe Loaders.

Add the PC105 STANDARD FLOW Model to the Cart
Working Width
17.7in
Maximum Cutting Depth
5.9in
Required Hydraulics
Standard Flow
Overall Width
68in
Overall Length
46.5in
Overall Height
36.5in
Weight
1629.2lb
Optimal Hydraulic Flow
80-115 L/min (21-30 gpm)
Optimal Hydraulic Pressure
210-230 bar (3050-3300 psi)
Drum Speed
191 rpm
Optional Drum Widths/Depths
75/200, 150/200, 200/200, 300/200, 450/150 mm (3/8, 6/8, 8/8, 12/8, 18/6 in)
Tilt Angle Range +/-
8.5 degrees
Side Shift Travel
25.6in
Conical Bits
42
Standard Bit Type
All Purpose
