Exterior View
Maximum Digging Depth

117 in

Operating Weight

2325.9 lb

Overall Length

87 in

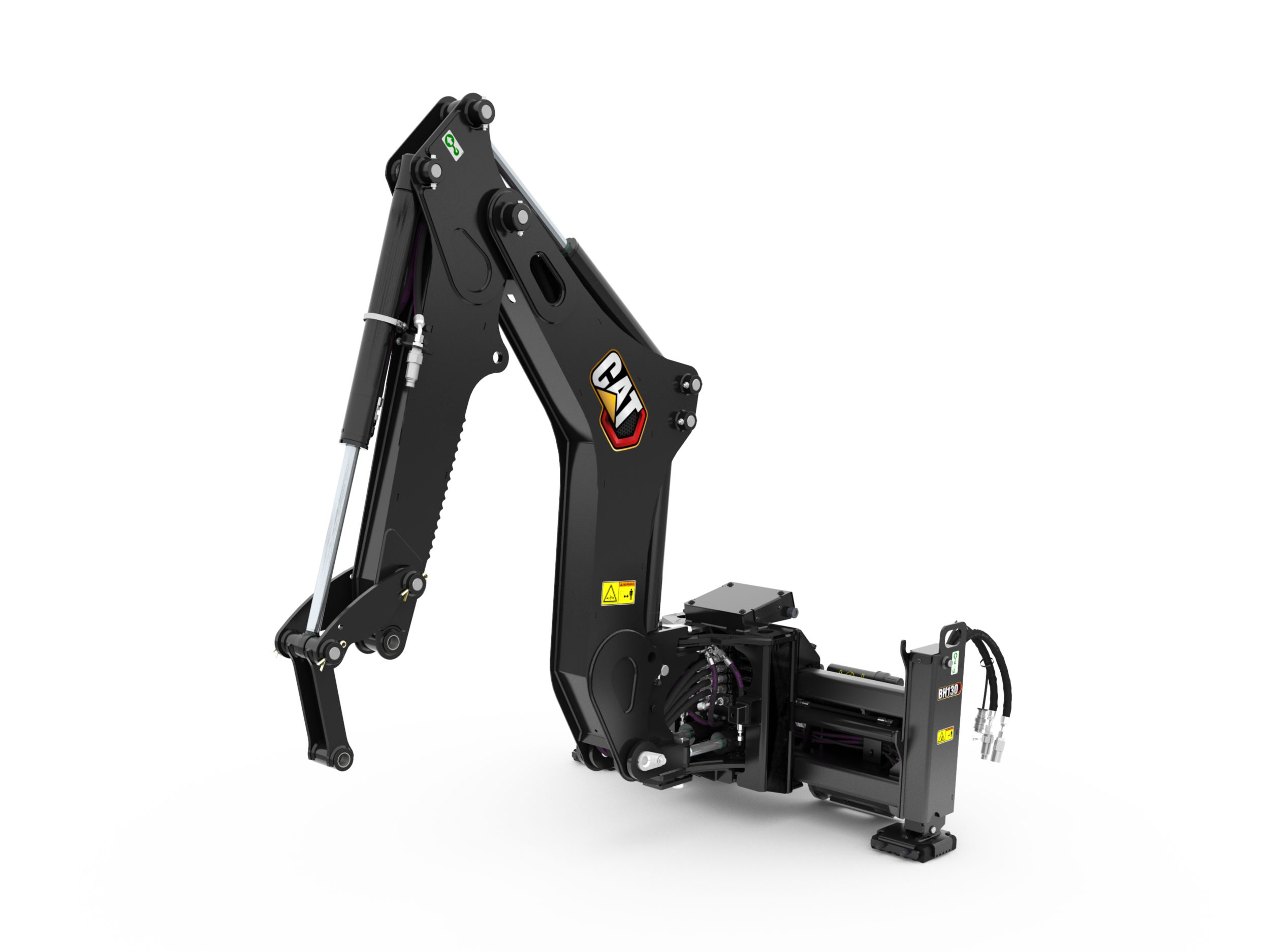

BH130 Backhoe with Smart Technology

ABOUT THE bh130

Cat® Backhoes are used in typical backhoe applications such as digging footings, basements, and drainage ditches, utility trenching, back-filling, and maintaining slopes and embankments in construction, industrial, and landscaping settings. They are ideal for demolishing concrete when paired with Cat B4/B6/H45/H55/H65 hammers.

Add the BH130 WITH SMART TECHNOLOGY Model to the Cart
Maximum Digging Depth
117in
Operating Weight
2325.9lb
Overall Length
87in
Stabilizer Spread – Operating Position
71.4in
Digging Depth at 610 mm (2 ft)
124.3in
Digging Depth at 4220 mm (8 ft)
106.5in
Straight Wall Digging Depth
79.5in
Overall Operating Height
146.6in
Loading Height
97.2in
Loading Reach
73.6in
Reach From Swing Pivot at Ground Line
158.6in
Swing Arc
180 degrees
Bucket Rotation
183 degrees
Bucket Breakout Force
7012.9lb
Stick Breakout Force
3538.4lb
Boom Pivot Height
17.6in
Ground Clearance
3.9in
Transport Height
100.9in
Transport Width
80.4in
Required Hydraulics
Standard Flow
Optimal Hydraulic Flow
50-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure
180-230 bar (2600-3340 psi)
Total Side Shift Travel
33in
Interface Type
Skid Steer Coupler
