Operating Weight – With Cab

16276 lb

Compaction Width

66 in

Gross Power

99.8 hp

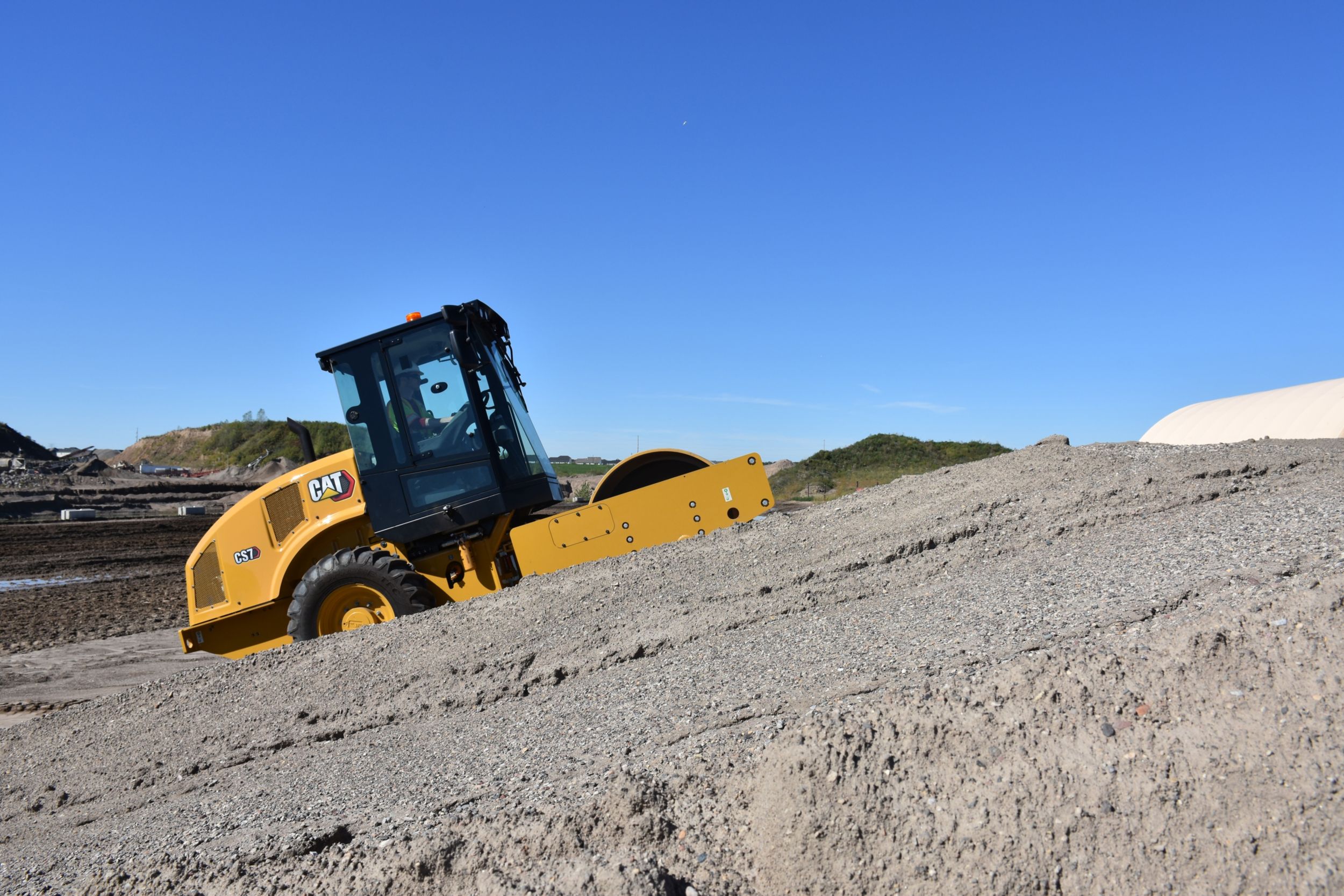

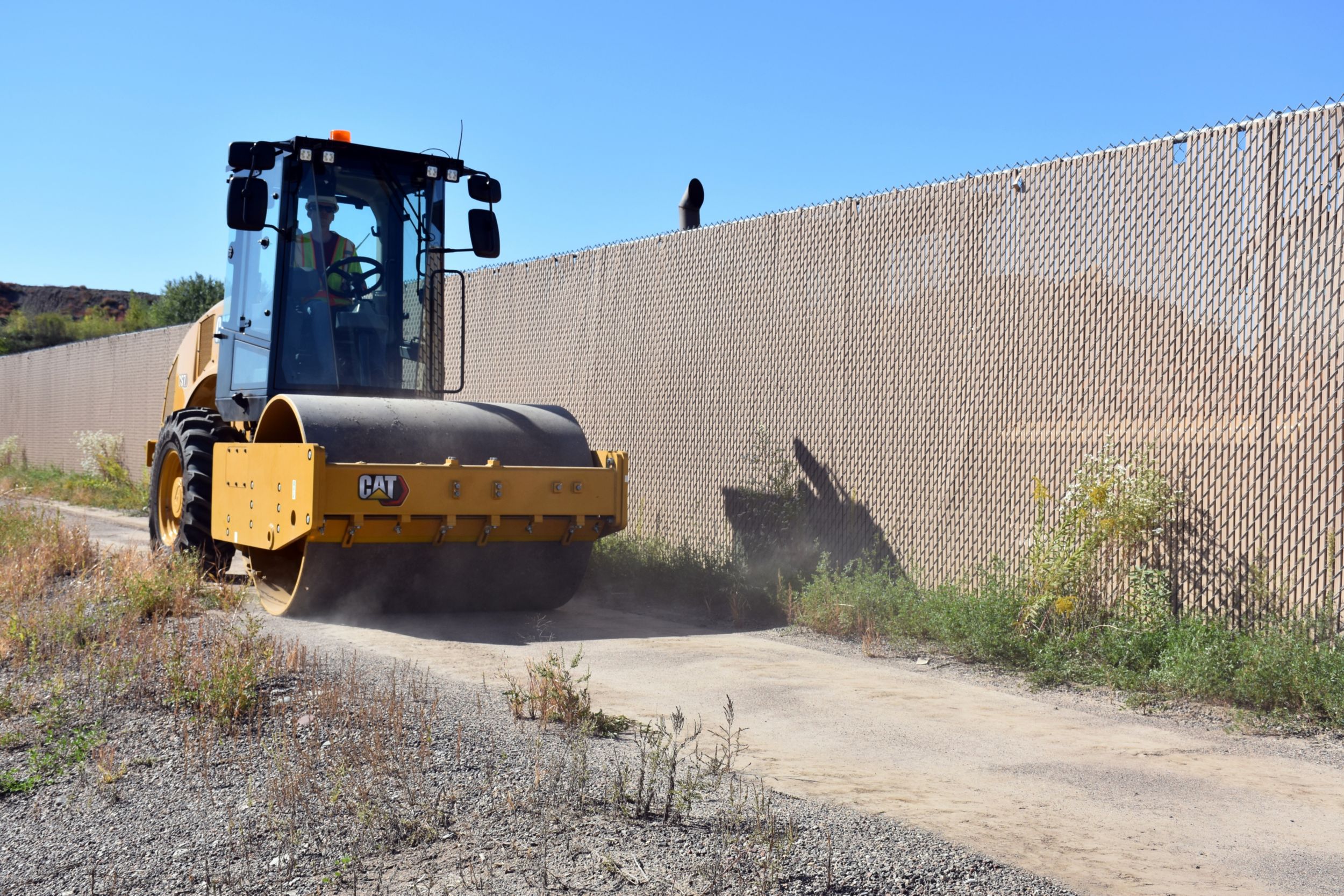

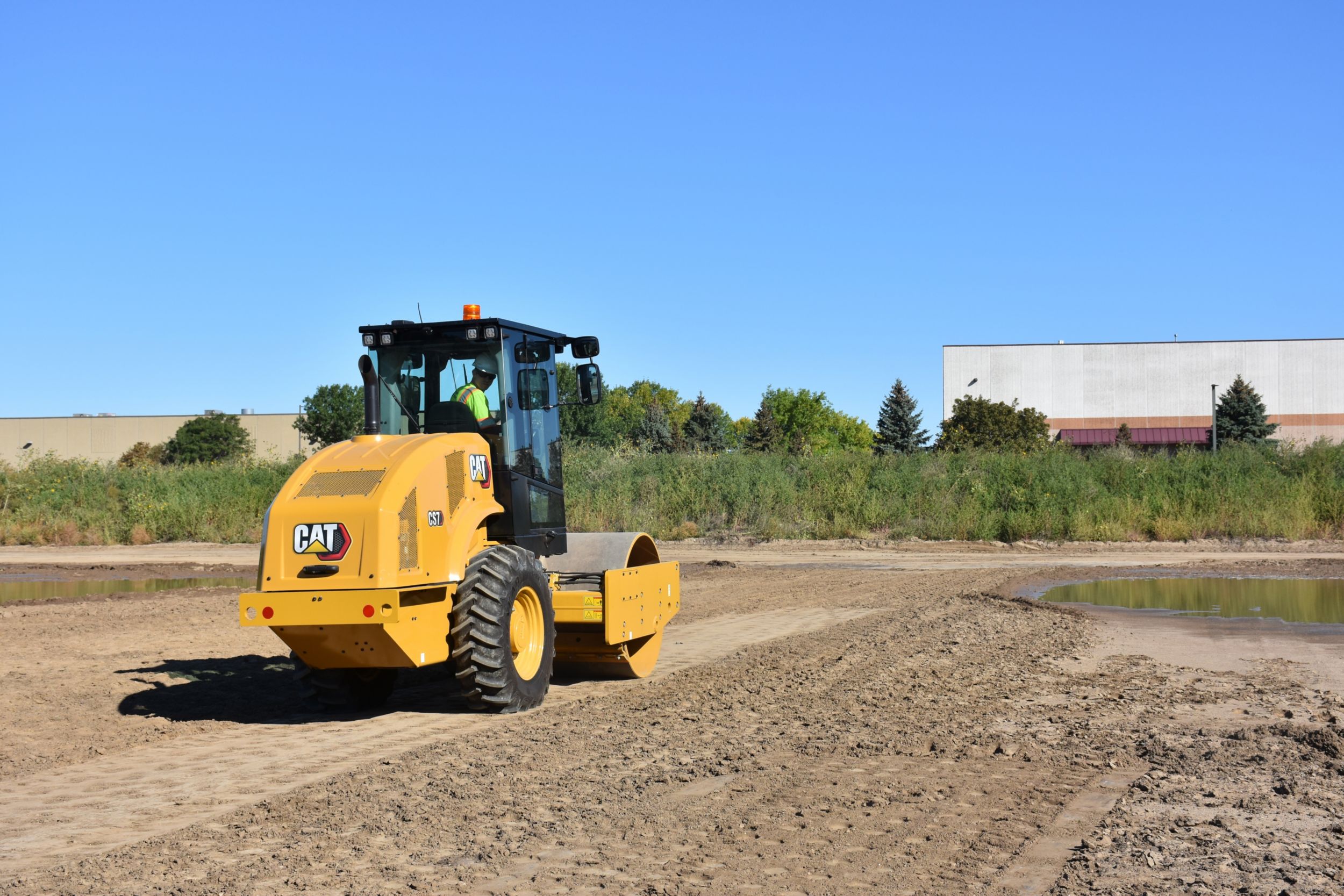

CS7 Vibratory Soil Compactor

ABOUT THE CS7

The CS7 is ideally-sized for small compaction jobs or working in tight areas such as trenches or job sites with limited space.

The CS7 model is not yet in your cart.
Click on the add to cart button to build an equipment list.
Add the CS7 Model to the Cart
Operating Weight – With Cab
16276lb
Weight – Drum with ROPS/FOPS Canopy
7540lb
Operating Weight – With ROPS/FOPS Canopy
15826lb
Weight – Drum with Cab
7694lb
Compaction Width
66in
Static Linear Load – With Cab
115.9lb/in
Curb Clearance
14.5in
Drum Width
66in
Turning Radius – Inside Drum Edge
10ft
Ground Clearance
15.4in
Travel Speed – Maximum
6.8mile/h
Static Linear Load – With ROPS/FOPS
113.7lb/in
Gross Power
99.8hp
Stroke
4.7in
Net Power – ISO 9249
92.7hp
Net Power – SAE J1349:2011
91.7hp
Bore
3.9in
Engine Model
Cat C3.6
Overall Width
5.9ft
Wheel Base
8.5ft
Overall Width – With Blade Option
7ft
Drum Diameter
48.1in
Overall Length
16.7ft
Overall Length – With Blade Option
18.4ft
Drum Width
66in
Maximum Height
2.9ft
Variable Frequency Option Range
23.3-31.9 Hz (1400-1914 vpm)
Vibratory Frequency – Standard
1915V/m
Centrifugal Force – Minimum
15056.3lb
Nominal Amplitude – High
0.066in
Nominal Amplitude – Low
0.033in
Centrifugal Force – Maximum
29989.7lb
Fuel Tank Capacity
37gal (US)
  • Operator Environment
    • ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
    • Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
    • Adjustable Tilting Steering Column with Integrated Cup Holders
    • Rear Vision Camera System
    • Seat Belt
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • Vibratory System
    • Smooth Drum
    • Dual Amplitude, Single Frequency
    • Pod-Style Eccentric Weight Housings
    • Auto-vibe Function
    • Front Adjustable Steel Scraper
    • Universal Bumper
  • Power Train
    • Cat C3.4B Engine
    • Air Cleaner, Dual Element
    • Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
    • Dual Propel Pumps; One for Drum Drive, One for Rear Axle
    • Fuel Filter, Water Separator, Priming Pump, Water Indicator
    • Tilting Radiator/Hydraulic Oil Cooler
    • Dual Braking System
    • Two-speed Hydrostatic Transmission
  • Electrical
    • 12 volt Electrical System
    • 150 ampere Alternator
    • 60 Cold-cranking Amps Battery Capacity
  • Other
    • Product LinkTM
    • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
    • S-O-SSM Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
  • Operator Environment
    • ROPS/FOPS Cab with Climate Control
    • Sun Visor
  • Vibratory System
    • Padfoot Shell Kit (oval or square pads available)
    • Leveling Blade
    • Variable Frequency
    • Dual Adjustable Steel Scrapers
    • Scraper Shell Kit Ready
    • Recording Module for Vibration Frequency
  • Power Train
    • Transmission Guard
    • Bio-oil Factory Fill
  • Technology Solutions
    • Measure – Compaction Meter Value (CMV)
    • Map – SBAS GNSS Mapping
    • Connect – Cloud and Machine Connectivity
  • Other
    • Upgraded Halogen Light Package
    • Rotating Beacon
