Operating Weight – With Cab

16990 lb

Compaction Width

66 in

Gross Power

99.8 hp

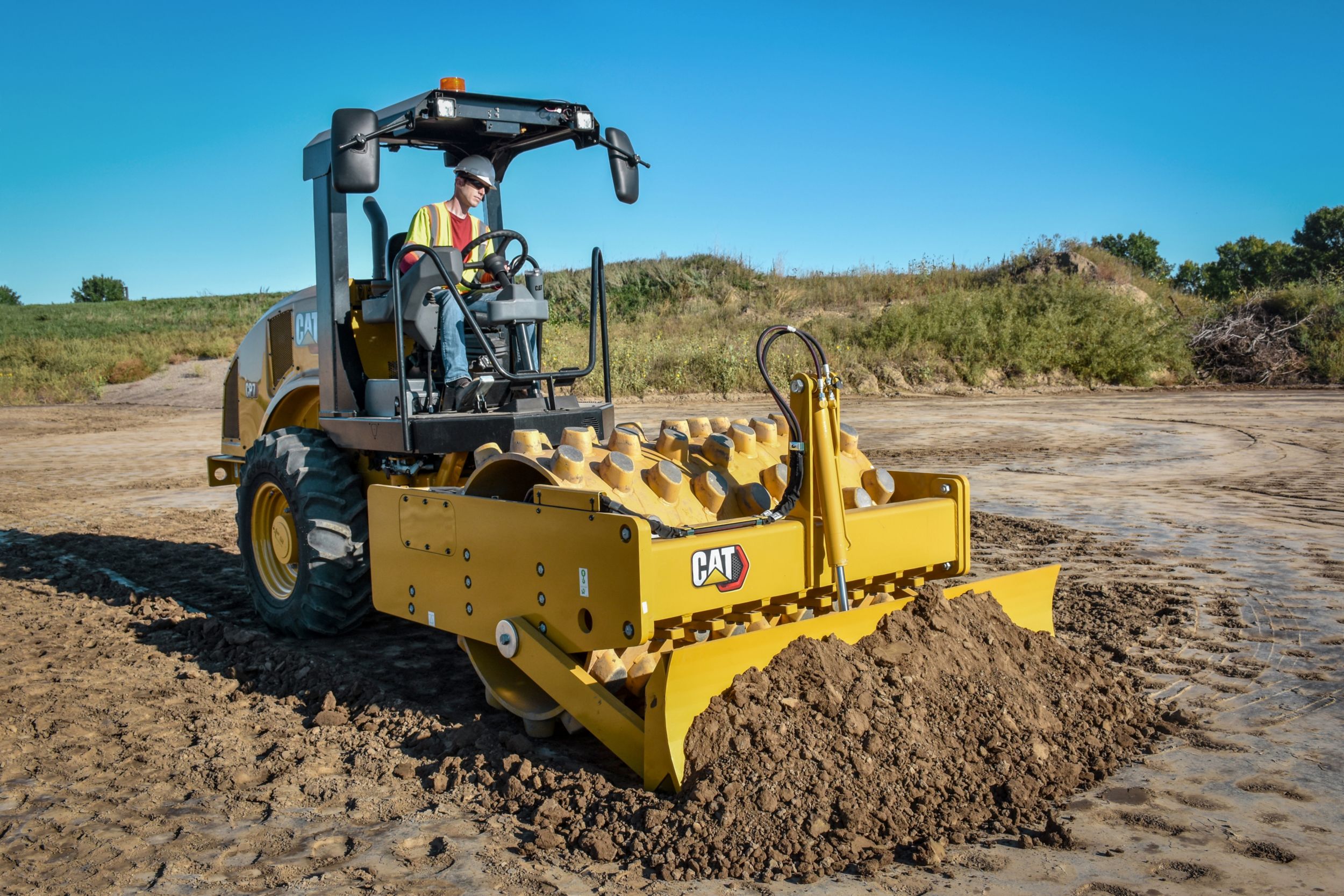

CP7 Vibratory Soil Compactor

ABOUT THE cp7

The CP7 Vibratory Soil Compactor is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.

Add the CP7 Model to the Cart
Operating Weight – With Cab
16990lb
Weight – Drum with Cab
8293lb
Operating Weight – With ROPS/FOPS Canopy
16541lb
Weight – Drum with ROPS/FOPS Canopy
8139lb
Compaction Width
66in
Turning Radius – Inside Drum Edge
10ft
Drum Width
66in
Travel Speed – Maximum
6.8mile/h
Curb Clearance
14.6in
Ground Clearance
15.2in
Gross Power
99.8hp
Net Power – ISO 9249
92.7hp
Engine Model
C3.6
Stroke
4.72in
Net Power – SAE J1349:2011
91.7hp
Bore
3.9in
Drum Width
66in
Overall Width
5.9ft
Overall Length – With Blade Option
18.4ft
Overall Length
16.7ft
Maximum Height
9.3ft
Wheel Base
8.5ft
Drum Diameter – Over Pads
48.1in
Overall Width – With Blade Option
7ft
Nominal Amplitude – High
0.061in
Centrifugal Force – Maximum
29990lb
Vibratory Frequency – Standard
1915V/m
Centrifugal Force – Minimum
15056lb
Variable Frequency Option Range
23.3-31.9 Hz (1400-1915 vpm)
Nominal Amplitude – Low
0.031in
Fuel Tank Capacity
37gal (US)
  • Operator Environment
    • ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
    • Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
    • Adjustable Tilting Steering Column with Integrated Cup Holders
    • Rear Vision Camera System
    • Seat Belt
    • 12-volt Power Outlet
    • Horn, Backup Alarm
  • Vibratory System
    • Padfoot Drum
    • Dual Amplitude, Single Frequency
    • Pod-Style Eccentric Weight Housings
    • Auto-vibe Function
    • Front Adjustable Steel Scraper
    • Universal Bumper
  • Power Train
    • Cat C3.4B Engine
    • Air Cleaner, Dual Element
    • Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
    • Dual Propel Pumps; One for Drum Drive, One for Rear Axle
    • Fuel Filter, Water Separator, Priming Pump, Water Indicator
    • Tilting Radiator/Hydraulic Oil Cooler
    • Dual Braking System
    • Two-speed Hydrostatic Transmission
  • Electrical
    • 12 volt Electrical System
    • 150 ampere Alternator
    • 60 Cold-cranking Amps Battery Capacity
  • Other
    • Product LinkTM
    • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
    • S-O-SSM Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
  • Operator Environment
    • ROPS/FOPS Cab with Climate Control
    • Sun Visor
  • Vibratory System
    • Leveling Blade
    • Variable Frequency
    • Dual Adjustable Steel Scrapers
    • Recording Module for Vibration Frequency
  • Power Train
    • Transmission Guard
    • Bio-oil Factory Fill
  • Technology Solutions
    • Map – SBAS GNSS Mapping
    • Connect – Cloud and Machine Connectivity
  • Other
    • Upgraded Halogen Light Package
    • Rotating Amber Beacon
