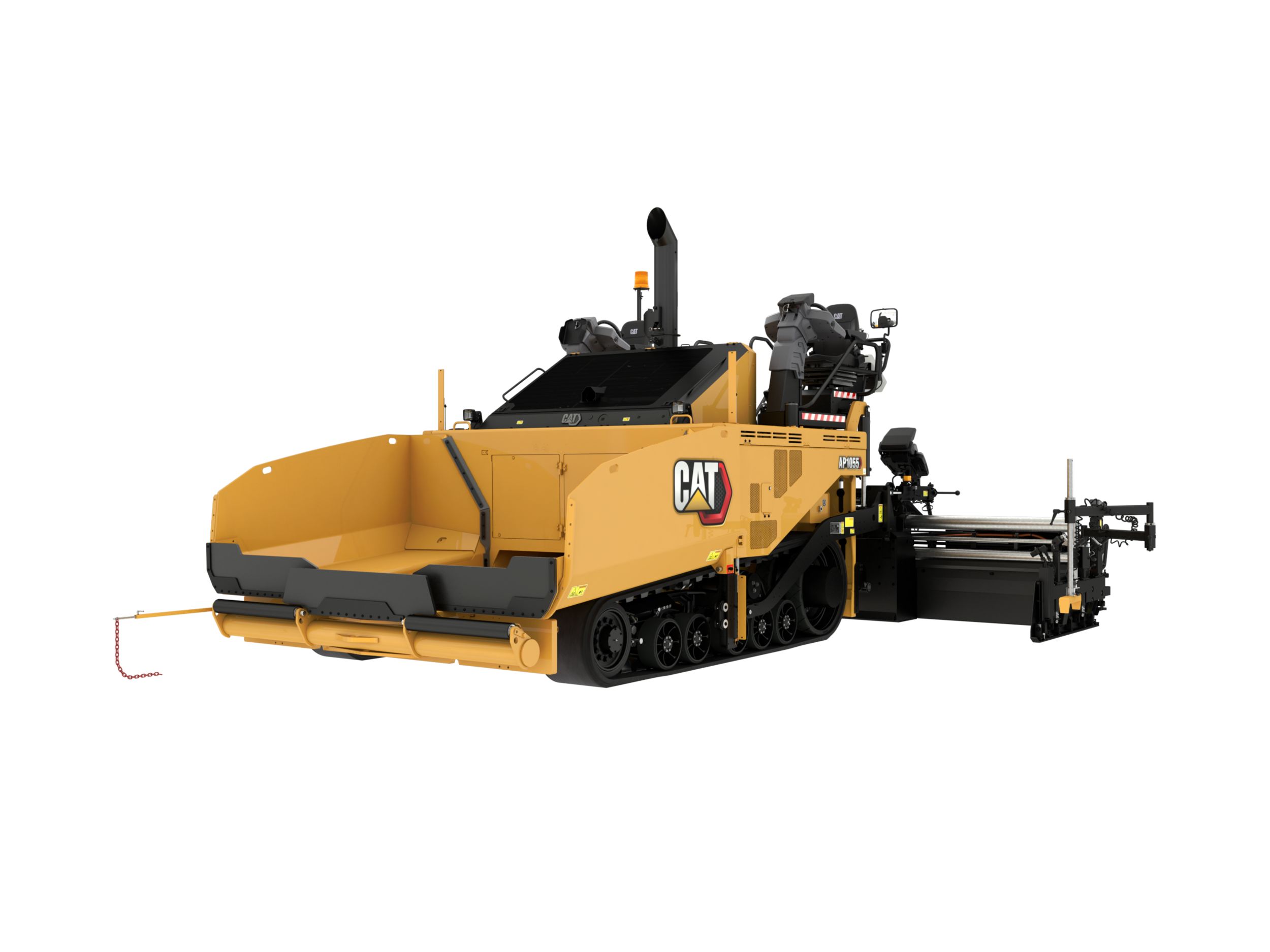

AP1055 Mobil-Trac Paver

The AP1055 is a high-production rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.

Paving Range with SE60 V
3.0 m – 7.65 m (9′ 10″ – 25′)
Paving Range with SE60 FM
3.0 m – 7.8 m (10′ – 25′ 6″)
Paving Range with SE60 V XW
3.0 m – 10 m (10′ – 33′)
Paving Range with SE60 VT XW
3.0 m – 10 m (10′ – 33′)
Operating Length
22.3ft
Operating Width
10.8ft
Overall Height
12.25ft
Transport Length
21.9ft
Transport Width
9.8ft
Transport Height
9.7ft
Operating weight with SE60 V
45087lb
Operating weight with SE60 FM
45352lb
Operating weight with SE60 V XW
46573lb
Shipping Weight – Paver Only
36800lb
Maximum Throughput Capacity
1602ton(US)/h
Maximum Travel Speed
9mile/h
Maximum Paving Speed
210ft/min
Maximum Paving Speed – With Tamper Bar Screed
82ft/min
Inside Turn Radius
1.5ft
Engine Power (1)
225hp
Engine Model (1)
Cat C7.1
Fuel Tank Capacity
92gal (US)
DEF Tank
5gal (US)
Cooling System
12gal (US)
Hydraulic Oil Tank
58gal (US)
Washdown Tank
7.9gal (US)
  • Operating Environment
    • Dual operating stations
    • Steering guide
    • Ventilation System
  • Technology
    • Product Link Elite 641_cellular
  • Powertrain
    • Automatic engine speed control
    • Cat C7.1 Engine
    • Variable speed cooling fan
    • Eco-mode
    • Extended life hydraulic oil
  • Electrical System
    • 70 kW generator
    • Cat Electronic Technician
    • Machine security system
    • Remote jump start receptacle
    • Automotive type fuse system
    • 12-volt power receptacle
    • 100 amp alternator
    • 1400 CCA batteries
  • Material Delivery
    • Contact-type material feed sensors
    • Adjustable push-roller
  • Service And Maintenance
    • Extended-life coolant
    • Remote access drains
    • Scheduled Oil sampling ports
    • Sight gauges
  • Safety
    • Back-up alarm
    • Horn
    • Working lights
    • Mirror package
    • Vandal covers
  • Technology
    • Cat Grade Control
    • Hopper level and material height sensor
    • Pave start assistant
    • Product Link Elite 631_satellite
    • Thermal mapping
  • Operating Environment
    • Air-ride seat
    • Hard top canopy
    • Deceleration pedal
    • Friction steering
    • Heated seats
    • Side shields
    • Towpoint indicator (2nd)
    • Umbrella
    • Screen visor
    • Windshield
  • Powertrain
    • Ballast_front weights
    • Mobil-trac belt – smooth
    • Mobil-trac belt – tread bar
  • Electrical System
    • Auxiliary power panel_6.6 kW
  • Material Delivery
    • Auger extension
    • Leveling devices
    • Mainframe extensions_manual
    • Mainframe extensions_power
    • Sonic feed sensors
    • Power folding front apron
    • Truck hitch
    • Washdown pump and reel
    • Washdown tank
    • Wide width paving packages
  • Service And Maintenance
    • Service repair kits
    • Uptime kits
  • Screed Choices
    • SE60 V Screed
    • SE60 FM Screed
    • SE5 VT XW Screed
    • SE60 V XW Screed
  • Grade References
    • Sonic Averaging Beam
    • Rigid Ski, 9.15 m (30′) and 12.2 m (40′)
