Exterior View
Interior View
Engine Model

Cat C3.6

Power – Net

80 hp

Operating Weight

17855 lb

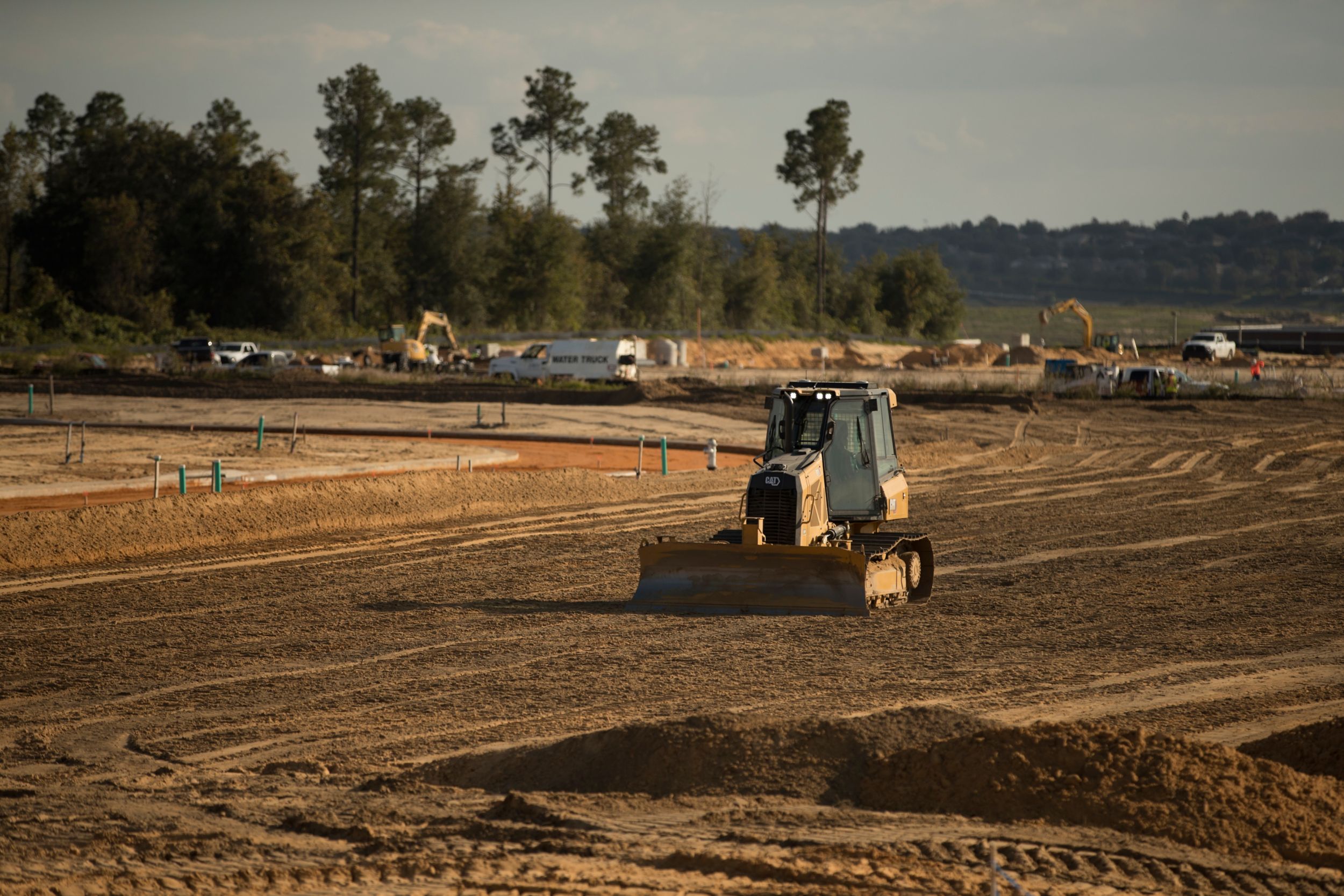

D1 Dozer

ABOUT THE d1

The Cat® D1 delivers superior performance and the broadest choice of technology features to help you get the most from your dozer. Nimble and responsive, it has power for dozing and finesse for grading. Fully hydrostatic transmission gives you seamless acceleration, so you can get the job done quickly. The load sensing system automatically optimizes ground speed based on load, for the greatest productivity and fuel efficiency.

Add the D1 Model to the Cart
Engine Model
Cat C3.6
Power – Net
80hp
Displacement
220in³
Net Power – 2,200 rpm – SAE J1349
80hp
Net Power – 2,200 rpm – ISO 9249/EEC 80/1269
80hp
Power Train
Hydrostatic
Note (1)
Net power is tested per ISO 9249:2007 and SAE J1349:2011 and as advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator.
Note (2)
All non-road U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final) and Korea Tier 4 Final diesel engines are required to use only Ultra Low Sulfur Diesel (ULSD) fuels containing 15 ppm EPA/10 ppm EU (mg/kg) sulfur or less.
Operating Weight
17855lb
Operating Weight – LGP
18839lb
Note (1)
Specifications shown are for machine equipped with dozer blade, EROPS cab, back-up alarm, operator, coolant, lubricants and full fuel tank.
Operating Weight – LGP, 762 mm/30 in
19295lb
Note (2)
For machine with ripper, add 554 kg (1,222 lb).
Drive Pumps
1
Maximum Travel Speed – Reverse
6.2mile/h
Relief Valve Settings
7033psi
Maximum Travel Speed – Forward
5.6mile/h
Track Motors
2
Pump Output
17.2gal/min
Relief Valve Settings
2988psi
Type
Parallelogram
Number of Shanks
3
Height
6.5in
Weight
1222lb
Maximum Ground Clearance Under Tip
17.6in
Maximum Digging Depth
13.3in
Overall Width
67.3in
Maximum Reach – Ground Line
30.2in
FOPS
ISO 3449:2005 Level II
ROPS
ISO 3471:2008
Length – Track on Ground – LGP, 762 mm (30 in)
89in
Length – Track on Ground – LGP
89in
Track Gauge – LGP
68in
Shoe Width – LGP, 762 mm (30 in)
30in
Track Gauge – LGP, 762 mm (30 in)
73in
Shoe Width – LGP
25in
Track Gauge
59in
Shoe Width – Standard
16in
Ground Pressure – LGP
4.3psi
Ground Pressure – LGP, 762 mm (30 in)
3.7psi
Number of Shoes – Each Side – Sealed and Lubricated Track (SALT) Undercarriage
43
Number of Rollers – Each Side
6
Length of Track on Ground
89in
Number of Shoes – Each Side – Abrasion Undercarriage
38
Ground Pressure
6.45psi
Final Drive – Each – LGP
2.6gal (US)
Cooling System
4.2gal (US)
Diesel Exhaust Fluid (DEF) Tank
4.9gal (US)
Transmission – Hydraulic Tank
23.8gal (US)
Crankcase – With Filter
2.8gal (US)
Fuel Tank
51.5gal (US)
Final Drives – Each Side
2.6gal (US)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes.
BLADE: Blade Capacity (SAE) – LGP
2.17yd³
BLADE: Blade Lift Height – LGP
28.7in
BLADE: Maximum Tilt – LGP
17.2in
BLADE: Blade Width – LGP
124in
Ground Clearance – LGP
13in
BLADE: Blade Width at Maximum Angle – LGP
113.1in
BLADE: Digging Depth – LGP
23in
Track Gauge – LGP
67.9in
Ground Clearance – LGP, 762 mm (30 in)
13in
BLADE: Blade Height – LGP
33.8in
Overall Length – With Blade – LGP, 762 mm (30 in)
167.8in
Track Gauge – LGP, 762 mm (30 in)
73in
BLADE: Blade Cutting Edge Angle, Adjustable – LGP
52° to 58°
BLADE: Maximum Angle (either side) – LGP
25°
Overall Length – With Blade – LGP
167.8in
BLADE: Blade Width at Maximum Angle – Standard
95.2in
BLADE: Digging Depth – Standard
23.2in
BLADE: Blade Width – Standard
104.2in
BLADE: Blade Lift Height – Standard
28.7in
Ground Clearance – Standard
13in
BLADE: Blade Cutting Edge Angle, Adjustable – Standard
52° to 58°
BLADE: Maximum Angle (either side) – Standard
25°
BLADE: Maximum Tilt – Standard
14.5in
BLADE: Blade Capacity (SAE) – Standard
1.99yd³
Note
*Abrasion Undercarriage
Track Gauge – Standard
58.9in
BLADE: Blade Height – Standard
35.8in
Overall Length – With Blade – Standard
168in
Note
With Ripper Attachment (add to Length of Basic Dozer) – 1177 mm (46.3 in)
Length of Basic Dozer (without blade) – LGP, 762 mm (30 in)
129.6in
Width of Dozer (standard shoes, no blade) – Standard
74.8in
Length of Basic Dozer (without blade) – Standard
129.6in
Length of Basic Dozer (without blade) – LGP
129.6in
Width of Dozer (standard shoes, no blade) – LGP, 762 mm (30 in)
94.9in
Dozer Height – LGP
108.9in
Width of Dozer (standard shoes, no blade) – LGP
92.9in
Dozer Height – LGP, 762 mm (30 in)
108.9in
Dozer Height – Standard
108.9in
Maximum Line Speed – Bare Drum
32150lb
Rope Diameter – Optional
0.75in
Winch Drive
Hydraulic
Rope Diameter – Recommended
0.63in
Speed
Variable
Drum Diameter
8in
Drum Width
9.65in
Throat Clearance
5.6in
Winch Length
35.63in
Overall width
27.91in
Weight
1747lb
Maximum Line Pull – Full Drum
79ft/min
Drum Capacity – Recommended Cable
277ft
Maximum Line Pull – Bare Drum
50ft/min
Drum Capacity – Optional Cable
195ft
Maximum Line Speed – Full Drum
20350lb
Control
Hydraulic
Weight
1345lb
Drum diameter
10in
Winch drive
Hydrostatic
Winch length
27.76in
Maximum line pull – bare drum
40000lb
Maximum line speed – full drum
207ft/min
Drum width
10.8in
Drum capacity – optional
256ft
Rope diameter – recommended
0.63in
Maximum line pull – full drum
25000lb
Rope diameter – optional
0.75in
Speed
Variable
Maximum line speed – bare drum
131ft/min
Throat clearance
6.75in
Drum capacity – recommended cable
371ft
Overall width
29.2in
Control
Hydraulic
  • Power Train
    • Air cleaner with precleaner, automatic dust ejection and underhood intake
    • Aluminum bar plate cooling system (radiator, power train)
    • Automatic traction control
    • Cat® C3.6 diesel engine
    • Drive, auxiliary
    • Dual path, closed loop, hydrostatic transmission
    • Electric fuel pump
    • Fuel/water separator
    • Turbocharged aftercooled
  • Electrical
    • Alarm, backup
    • Alternator, 150 amp, heavy duty
    • Batteries, heavy duty, maintenance free, 1,000 CCA
    • Diagnostic connector
    • Four integrated front halogen lights, two rear halogen
    • Horn, electric
    • Starter, electric, 12 V, heavy duty
  • Undercarriage
    • Heavy Duty Undercarriage
    • Carrier rollers
    • Guards, front/rear guiding
    • Six roller track frame
    • Track adjusters, hydraulic
    • Track rollers, lifetime lubricated
  • Hydraulic
    • Hydraulic pump and oil
    • Single lever, three function control
    • Three valve hydraulics
  • Cat Technology
    • Third party 3D grade system compatible
    • Slope Indicate
    • Stable Blade – Basic Lift
  • Attachments
    • Rigid drawbar
    • Front pull device
  • Operator Environment
    • Armrests, adjustable
    • Coat hook
    • Controls, seat mounted, fore/aft adjustment
    • Cup holders
    • Eco Mode
    • Electronic Monitoring system with gauge:
      – Chassis slope indication
      – Diesel exhaust fluid (DEF)
      – Engine coolant temperature
      – Fuel level
      – Hydraulic oil temperature
    • Electronic security system
    • Engine air cleaner service indicator
    • Engine RPM and gear display
    • Floor mat, rubber, heavy duty
    • Foot pads, dash
    • Hour meter, electronic
    • Independent forward/reverse speed settings
    • Mirror, rearview, inside
    • Power port, 12 volt
    • ROPS/FOPS canopy
    • Seat, air suspended, cloth or vinyl
    • Seatbelt, hi-vis retractable 76 mm (3″)
    • Seatbelt buckling indicator/reminder
    • Single pedal combining decel and brake functions
    • Speed recall
    • Storage compartment
    • Throttle switch, rotary
    • Travel speed limiter, electronic
  • Power Train
    • Air cleaner with external precleaner
    • Installation, winch
  • Electrical
    • Four integrated front LED lights, two rear LED
  • Undercarriage
    • Abrasion undercarriage (38 section)
    • Track Pairs:
      – Track, 406 mm (16 in)
      – Track, 635 mm (25 in)
      – Track, 762 mm (30 in)
  • Hydraulic
    • Four valve for use with ripper
    • Four valve for use with winch
  • Cat Technology
    • Assist with Attachment Ready Option (ARO) includes:
      – Slope Indicate
      – Blade Load Monitor
      – Stable Blade Lift and Tilt
      – Slope Assist
      – Traction Control
      – Steer Assist
      – AutoCarry
    • Grade 3D with Assist includes:
      – Same Assist with ARO features
      – Steer Assist 3D
      – Grade 3D
    • Cat Product Link PLE643/PLE743 Cellular
    • Cat Product Link PLE683/PLE783 Cellular/Satellite
    • Full-color 254 mm (10 in) touchscreen grade display
    • Cat Command Console (availability varies by region)
    • Cat Command Station (availability varies by region)
  • Attachments
    • Drawbar, towing
    • Machine security system
    • Mounting, winch
    • Ripper, parallelogram, includes three
    • shanks and teeth
    • Winch, hydraulic, high performance
    • Winch, hydraulic, retrieval
  • Operator Environment
    • Power Pitch
    • Cab, with air conditioning
    • Cab, polycarbonate windows and air conditioning
    • Radio, AM/FM Bluetooth®
    • Seat, air suspension, choice of:
      – Vinyl, heated seat with heated controls
      – Cloth, heated seat with heated controls
      – Cloth, heated and ventilated seat with heated controls
    • Sound suppression
  • Other
    • Heater, engine, coolant 120 V/240 V
    • Starting aid, ether
