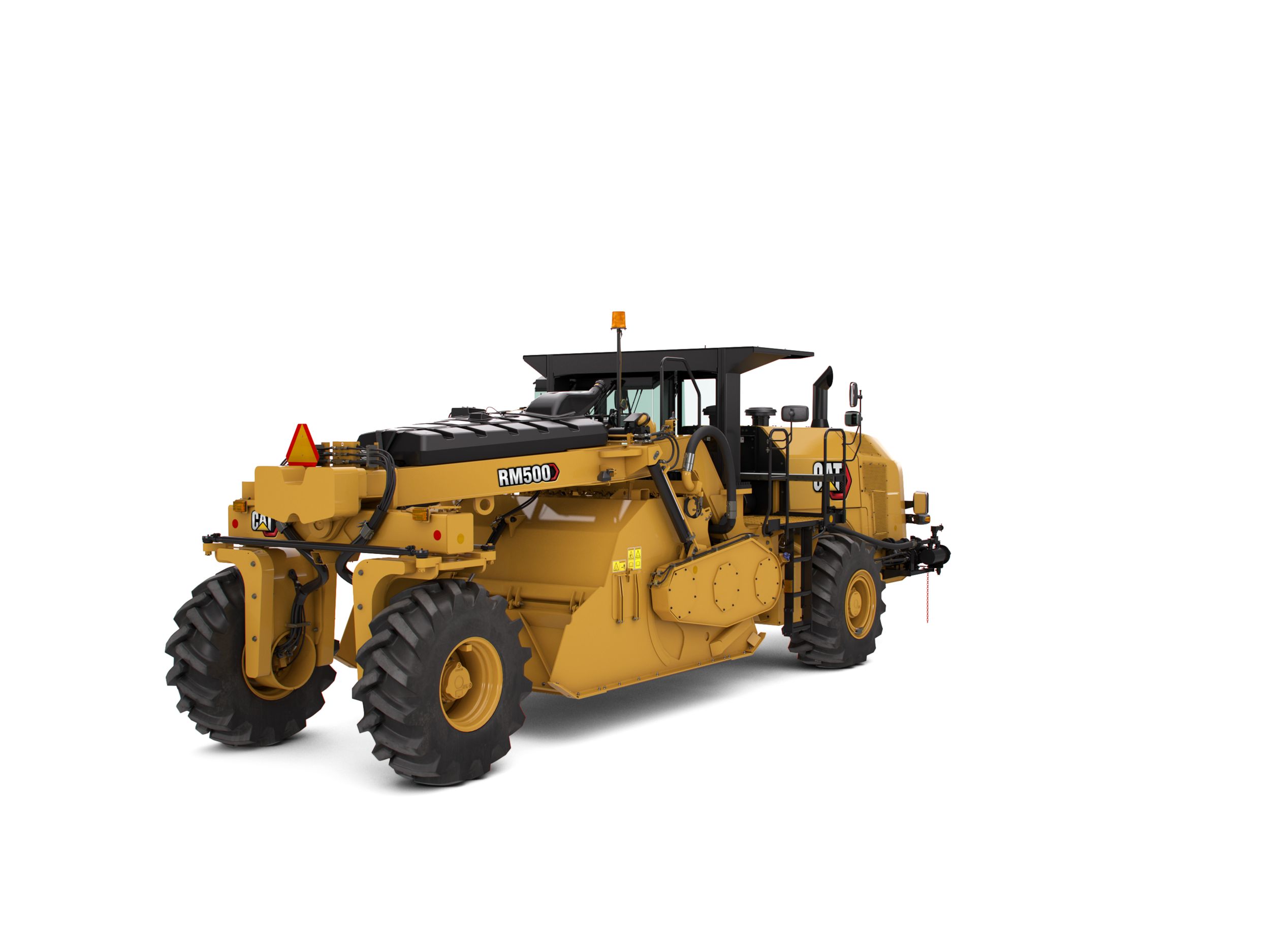

RM500 Road Reclaimer

The Cat RM500 features simple operation, a robust rotor drive system and a versatile design that make this durable industry workhorse an exceptional value. High production and excellent material quality go hand-in-hand with low operating and maintenance costs. Rotor and spray system options provide the ability to adapt to a wide range of full-depth reclamation and soil stabilization applications.

Request a Quote View rental options Apply for credit

Maximum Operating Weight

69518lb

Note (1)

Maximum weight includes base machine, all options, ROPS, cab, coolant, lubricants, Universal 16 rotor, full fuel tank,full water tank and 75 kg (165 lb) operator.

Operating Weight

62920lb

Note (2)

Operating weight includes base machine, no options, ROPS, cab, coolant, lubricants, Universal 16 rotor, 50% full fuel tank,50% full water tank and 75 kg (165 lb) operator

Cutting/Mixing Width

96in

Maximum Cutting/Mixing Depth

20in

Note (1)

Maximum cutting/mixing depth varies by rotor.

Rotor Options

Universal 16, Universal 18, Combination, Soil (Stabilization)

Rotor Drive

3-Speed Chain

Rotor Speeds

110 / 152 / 205 rpm

Maximum Travel Speed

6.5mile/h

Inside Turn Radius

14.2ft

Gross Power

546HP

Engine Power

539HP

Engine Model

Cat® C15

Emissions

U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V

Build Number

02A

Recyclability

97%

Length

33.83ft

Width

9.58ft

Maximum Height

11.78ft

Wheel Base

21.33ft

Ground Clearance

19.9in

Fuel Tank Capacity

279gal (US)

DEF Tank

12.2gal (US)

Cooling Systems

18.5gal (US)

Engine Oil

13.7gal (US)

Hydraulic Tank

59.2gal (US)

Note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Operating Environment
- Adjustable armrests
- Heated suspension seat
- 180° rotating operating station
- Audio-ready with speakers
- Full width sliding cab with heat and air conditioning
- Access ladder, right and left side
- High visibility retractable seat belt
- Mini-wheel steering control
- Multifunction propel lever
- Steering guides
- LCD touch screen operator interface
Powertrain
- Air to Air Aftercooler (ATAAC)
- Dual element air cleaner with pre-cleaner
- Extended life coolant with protection to -37 degrees C (-35 degrees F)
- On-demand fan with auto-reversing function
- Four steering modes
- All-Wheel Drive
- Electronic differential
- Oil-bath brake system
- Powertrain guard
Electrical System
- 150 amp alternator
- 24-volt charging system
- Automotive-type fuse system
- Remote start/charge receptacle
- Two 1365 CCA maintenance-free batteries
Rotor Drive System
- Maintenance-free drive shafts
- Self-lubricating roller chain and bearings
- Shear disk driveline protection
- Automatic Return-to-cut
- Powershift 3-speed transmission
- Three rotor speeds
- Variable volume mixing chamber
Service And Maintenance
- Grouped filters with ground level access
- Cat Product Link^™ – Cellular
- Remote access drains
- Ports for Scheduled Oil Sampling (S·O·S℠)
- Fluid level sight gauges
- Toolbox
Safety
- Back-up alarm
- Remote cameras (front, rear and rear rotor chamber door)
- Ground level emergency shutdown switch
- Horn (front and rear)
- ROPS
- Platform handrails and guardrails
- Mirrors
- Halogen working lights

Note
- Standard and optional equipment may vary. Consult your Cat dealer for details.
Powertrain
- Cat Bio HYDO^™ biodegradable hydraulic oil
- CE certificate
Spray Systems
- Water spray system
- Ultra Low-flow water spray system
- Emulsion spray system
- Folding telescoping push bar
Rotor Drive System
- Torque limiter driveline protection
- Rotor – Universal 16
- Rotor – Universal 18
- Rotor – Combination
- Rotor – Soil (Stabilization)
- Material sizing breaker bar
- Bolt-on counterweight – 1600 kg (3500 lb)
Service And Maintenance
- Additional toolbox
Safety
- Roading lights
- Folding LED safety beacon
