Exterior View
Interior View
Gross Power – SAE J1995:2014

284 hp

Net Power – SAE J1349:2011

249 hp

Net Power – ISO 9249:2007

249 hp

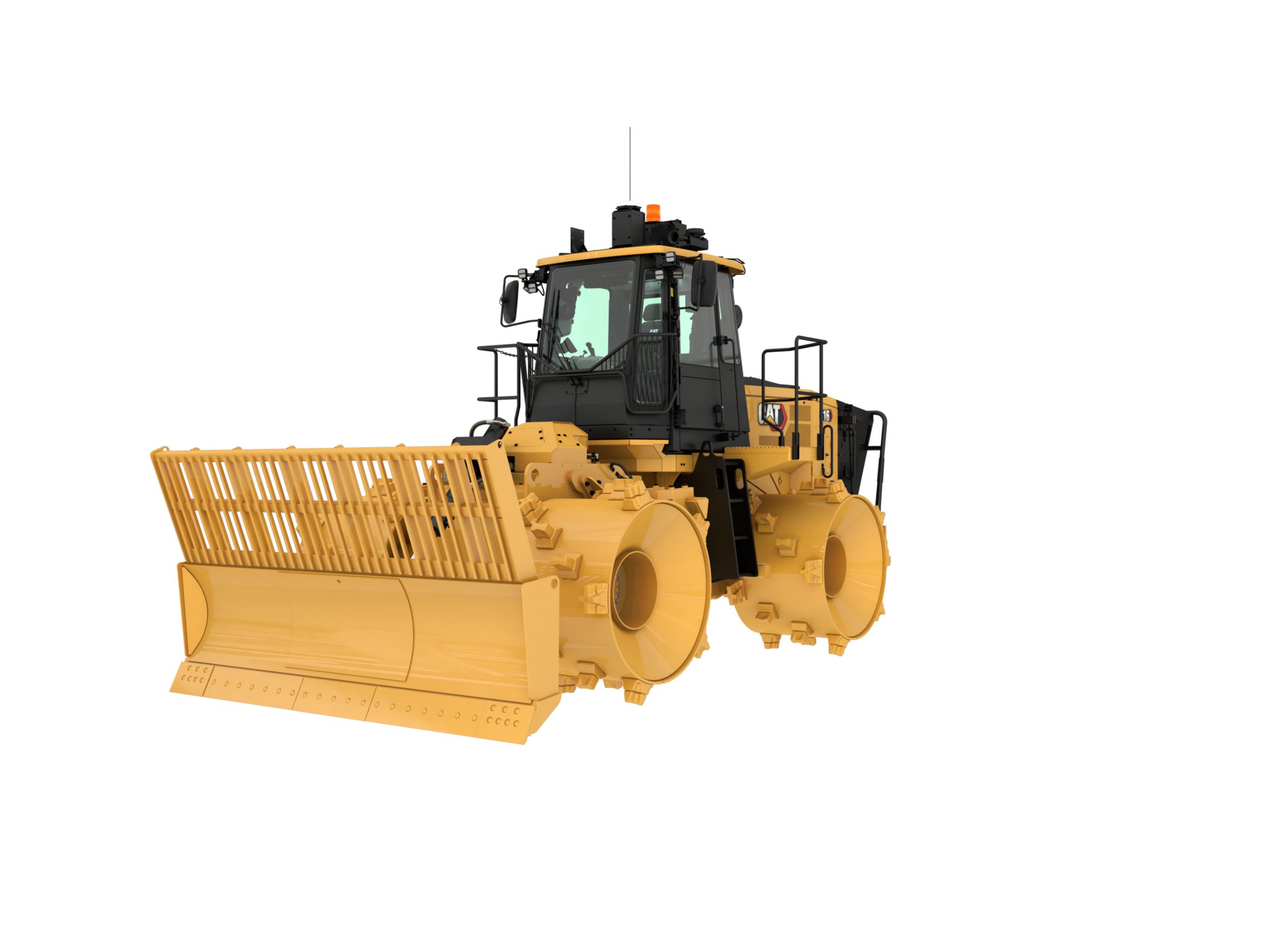

816 Landfill Compactor

ABOUT THE 816

Cat Landfill Compactors are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1972, the 816 has been the industry leader for over 50 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 816 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.

The 816 model is not yet in your cart.

Click on the add to cart button to build an equipment list.
Add the 816 Model to the Cart
Request a Quote View rental options Apply for credit

TAKE THE 816 FOR A SPIN

GET A PEEK INSIDE THE 816’S CABIN
GET A PEEK AT THE EXTERIOR OF THE 816

COMPARE THE 816 TO OTHER Landfill-compactors

Gross Power – SAE J1995:2014
284hp
Net Power – SAE J1349:2011
249hp
Net Power – ISO 9249:2007
249hp
Engine Power – ISO 14396:2002
275hp
Engine Model
Cat® C7.1
Emissions
Option 1 – U.S. EPA Tier 4 Final/EU Stage V/Korea Stage V and Japan 2014
Rated Speed
2200
Peak Torque ( 1,400 rpm )
902lbf·ft
Torque Rise
52%
Note
Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, aftertreatment, and alternator.
Emissions
Option 2 – Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA
Rated Speed
2200
Net Power – SAE J1349:2011
249hp
Net Power – ISO 9249:2007
249hp
Gross Power – SAE J1995:2014
286hp
Engine Power – ISO 14396:2002
275hp
Peak Torque ( 1,400 rpm )
749lbf·ft
Torque Rise
26%
Note
Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, muffler, and alternator.
Bore
4.1in
Stroke
5.3in
Displacement
427.8in³
High Idle Speed
2270r/min
Low Idle Speed
800r/min
Maximum Altitude – Without Derating
9842.5ft
Operating Weight (Tier 4 Final/Stage V)
57345lb
Operating Weight (Tier 3/Stage IIIA equivalent)
56793lb
Transmission Type
Cat Planetary Power Shift
Travel Speeds – Forward – First
3.4mile/h
Travel Speeds – Forward – Second
5.3mile/h
Travel Speeds – Reverse – First
3.7mile/h
Travel Speeds – Reverse – Second
5.5mile/h
Lift/Tilt System – Circuit
Pilot operated LS valve with EH
Lift/Tilt System
Variable displacement piston
Maximum Flow at 2,200 rpm
23.5gal/min
Relief Valve Setting – Lift/Tilt
3190psi
Cylinders, Double Acting: Lift, Bore, Stroke
120 mm x 915 mm (4.7 in x 36.0)
Pilot System
Open center, fixed displacement gear
Pilot Relief Valve Setting
3046psi
Steering System – Circuit
Pilot, Load Sensing
Steering System – Pump
Piston – Variable Displacement
Maximum Flow at 2,200 rpm
38.8gal/min
Relief Valve Setting – Steering
4003psi
Total Steering Angle
84°
Steering Cycle Times – High Idle
3s
Steering Cycle Times – Low Idle
8.2s
Fuel Tank
132.1gal (US)
Diesel Exhaust Fluid Tank
4.2gal (US)
Cooling Systems – Tier 4 Final/EU Stage V
21.4gal (US)
Cooling System – Tier 3/Stage IIIA Equivalent
19.3gal (US)
Engine Crankcase
5.3gal (US)
Transmission
14.8gal (US)
Differential – Final Drives – Front
11.4gal (US)
Differential – Final Drives – Rear
11.4gal (US)
Hydraulic System – Implement/Steering
46.2gal (US)
Hydraulic Tank Only
19.8gal (US)
Note
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester) * • 100% renewable diesel, H
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. – If equipped with R134a (Global Warming Potential = 1430), the system co
Front
Planetary – Fixed
Rear
Planetary – Oscillating
Oscillation Angle
±6°
Service Brakes
Single Disc Wet (Enclosed) 2 WHL
Parking Brake
Drum and Shoe, Spring Applied, Hydraulic Released
Operator Sound Pressure Level (ISO 6396:2008)
72dB(A)
Machine Sound Power Level (ISO 6395:2008)
111dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*
70dB(A)
Machine Sound Power Level (ISO 6395:2008)*
109dB(A)
Note (1)
* Sound suppression equipped
Note (2)
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at maximum engine cooling fan speed.
Note (3)
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at maximum engine cooling fan speed.
Note (4)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Operator Sound Pressure Level (ISO 6396:2008)
72dB(A)
Machine Sound Power Level (ISO 6395:2008)
112dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*
70dB(A)
Machine Sound Power Level (ISO 6395:2008)*
110dB(A)
Note (1)
* Sound suppression equipped
Note (2)
The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at maximum engine cooling fan speed.
Note (3)
The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at maximum engine cooling fan speed.
Note (4)
Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.
Capacity
13.08yd³
Overall Width
12ft
Height
6.4ft
Height of Cutting Edge
3.2ft
Digging Depth
1.2ft
Ground Clearance
3.7ft
Turning Radius – Outside Corner of Blade
21.2ft
Turning Radius – Inside Corner of Blade
9.5ft
Weight
4548lb
Total Operating Weight
57345lb
Combination Tips (Weight Group)
13554lb
Plus Tips – Weight (Group)
13982lb
Paddle Tips – Weight (Group)
13126lb
Outside Diameter
67.6in
Drum Diameter
55.1in
Drum Width
40in
Tips per Row
5
Tips per Wheel
20
Replaceable
Weld On
Width Over Drums
131.4in
Tip Height
6.25in
Height – Top of Beacon
14.3ft
Height to Top of Air Conditioning Condenser
13.7ft
Height – Cab Roof
12.7ft
Height – Top of Exhaust Pipe
11.6ft
Height – Top of Hood
9.1ft
Height to Top of Rear Compactor Guard
8.2ft
Ground Clearance to Hitch
1.7ft
Ground Clearance to Bottom of Bumper
2.7ft
Centerline of Rear Axle to Bumper
6.5ft
Centerline of Rear Axle to Rear Compactor Guard
8.6ft
Hitch to Centerline of Front Axle
5.5ft
Wheel Base
11ft
Width over Front Striker Bars
9.8ft
Width over Rear Striker Bars
10ft
Width over Platform
10.3ft
Width over Drums
11ft
Overall Machine Length with Straight Blade
25.6ft
Ground Clearance to Transmission Guard
1.7ft
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Powertrain
    • Advanced Productivity Electronic Control Shifting (APECS)
    • Air-to-air aftercooler
    • Brakes, full hydraulic, enclosed, wet multiple disc service brakes
    • Cat clean emission module (U.S. EPA Tier 4 Final/EU Stage V only)
    • Electro-hydraulic parking brake
    • Electronic Clutch Pressure Control (ECPC)
    • Engine, Cat C7.1 (configured for two emissions options): – Tier 4 Final/Stage V or emitting equivalent to Tier 3/Stage IIIA
    • Engine driven cooling fan (suction)
    • Fuel priming pump (electric)
    • Fuel-to-air cooler
    • Ground level engine shutdown
    • Muffler (under hood) (Tier 3/Stage IIIA equivalent only)
    • Radiator, unit core
    • Starting aid (ether)
    • Throttle lock
    • Transmission, planetary with 2F/2R speed range control
    • Torque converter
  • Electrical
    • Alarm, back-up
    • Alternator (150 amp)
    • Batteries, maintenance free
    • Electrical system (24 volt)
    • Ground level lockable master disconnect switch
    • Light, warning unswitched (LED strobe)
    • Lighting system (front and rear)
    • Starter, electric
    • Auxiliary start receptacle
  • Operator Environment
    • 12-volt power port for mobile phone or laptop connection
    • Air conditioner with roof-mounted condenser
    • Cab, sound-suppressed pressurized
    • Camera, rear vision
    • Coat and hard hat hooks
    • Fingertip shifting controls
    • Flip-up armrest
    • Heater and defroster
    • Electro-hydraulic controls – floor mounted
    • Implement hydraulic lockout
    • Instrumentation, gauges: – DEF fluid level (Tier 4 Final/Stage V only) – engine coolant temperature – fuel level – hydraulic oil temperature – speedometer/tachometer – torque convertor temperature
    • Instrumentation, warning indicators: – action alert system, three categories – brake oil pressure – electrical system, low voltage – engine failure malfunction alert and action lamp – parking brake status
    • Internal four-post rollover protective structure (ROPS/FOPS)
    • Light, (dome) cab
    • Lunchbox and beverage holders
    • Mirror, internal (panoramic)
    • Mirrors, heated rearview (externally mounted)
    • Radio, CB (ready)
    • Radio ready for entertainment: – antenna – speakers – converter (12-volt 10-15 amp)
    • Seat belt with minder, retractable, 76 mm (3″) wide
    • Steering and Transmission Integrated Control (STIC™) system with lockout
    • Sun visor, front
    • Transmission gear (indicator)
    • Vital Information Management System (VIMS™): – graphical information display – external data port – customizable operator profiles – event indicator light on rear grill
    • Wet-arm wipers/washers (front and rear): – intermittent wipers (front and rear)
    • Premium plus seat containing forced air heating and cooling, 2-way thigh adjustment, power lumbar and back bolster adjustment, ride stiffness adjustment, dynamic end dampening, and leather finish
    • Cab glass, laminated and tinted, rubber mounted
    • Horn group (trumpet)
    • Mirrors – cab: – Standard or heated
    • Precleaner, cab powered
    • Seat – cab: – Standard or heated and ventilated
  • Guards
    • Guard, radiator
    • Guards, axle (front and rear)
    • Guard, cab window
    • Guards, crankcase and power train, hinged
    • Guard, driveshaft
  • Fluids
    • Antifreeze, premixed 50% concentration extended life (–34° C/–29° F)
  • Other Standard Equipment
    • Doors, service access (locking)
    • Ecology drains for engine, radiator, transmission, hydraulic tank
    • Engine, crankcase, 500 hour interval with CJ-4 oil
    • Emergency exit
    • Fire suppression ready
    • Fuel tank, 500 L (132.1 gal)
    • Hitch, drawbar with pin
    • Hoses, Cat XT™
    • Hydraulic, engine, and transmission oil coolers
    • Oil change system, high speed
    • Oil sampling valves
    • Steering, load sensing
    • Total hydraulic filtration system
    • Vandalism protection caplocks
    • Venturi stack
  • Special Arrangements
    • Engine precleaners: – Turbine or dual stage
  • Blades
    • Dozer Arrangement – Standard (No Blade)
    • Dozer Arrangement – Straight Blade
    • Dozer Arrangement (No Blade)
  • Technology Products
    • Product Link: – cellular, satellite
  • Wheels And Cleaner Bars
    • Striker bars
    • Wheels and tips: – Wheel arrangement (6.25″ plus tip) – Wheel arrangement (6.25″ paddle tip) – Wheel arrangement (6.25″ combination tips) – Wheels
  • Note
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • Fluids
    • Antifreeze, –50° C (–58° F)
  • Special Arrangements
    • Engine: – Sound suppression
  • Powertrain
    • Heater, engine coolant, 120V
    • Heater, engine coolant, 240V
    • Axles, no spin front, rear differential
    • Axles, no spin front, open differential rear
    • Axles, open differential front, no spin rear
  • Miscellaneous
    • Film (ANSI) (Tier 4 Final/Stage V only)
    • CE/UKCA Certification (standard where regulations require it)
    • Plate – year of manufacture
  • Operator Environment
    • Radio, AM/FM/Aux/USB/Bluetooth®
    • Cat Compact RTK Mapping (available throught SITECH only)
    • Cat Compact SBAS Mapping (available through SITECH only)
    • Lights, standard or LED
  • Blades
    • Bulldozer Blades
  • Wheels And Cleaner Bars
    • Bar group – cleaner (cleaner fingers and striker bar)

Cat® Detect with Rear Camera

Cat® Detect with Smart Camera

Cat® Detect with Surround Cameras

Cat® Seat Belt Reminder

Why Choose Louisiana Cat

We serve to build and power our community for a better future.

  • Provide a safe & meaningful work environment
  • Deliver innovative solutions through our expertise
  • Committed to the long-term growth and success of our employees and customers
  • Grow our business profitably

YOU MIGHT ALSO BE INTERESTED IN




STEP 2: MANAGE THE ITEMS IN YOUR EQUIPMENT LIST BEFORE SUBMITTING A REQUEST FOR QUOTE



Request for Quote


Clear All Items in Your Cart
Keep Shopping

Review items, Adjust Quantity, Remove Unwanted Equipment

  • Select an equipment listed in step 2 to get started

Promotional Items Associated with the Selected Equipment

The Great Payback: Low Financing Bundle Details:

The Great Payback: Bundle 1 Fuel Credit Bundle Details:

Small Excavators Big Savings Details:

Compact Equipment Offer:

Compact Equipment Offer:

One More Step

In the next and final step, which consists of the submission of your equipment list for a request for quote you'll be able to:
  • Add a specific comment for each item in your cart
  • Fill out the required information in the submission form
Submit to get a Quote

Fill out the Form

If you're not finished yet with your equipment list, you can keep adding more items. Click here to go back to the previous page.

Keep Shopping

Terms and Conditions

Small Excavators Big Savings: Terms and Conditions

* Offer valid from October 1, 2024 through December 31, 2024 on new 313 through 317 Cat® excavators sold by participating Cat dealers to customers in the USA or Canada. Purchase must occur during offer period. Offer subject to machine availability and credit approval by Cat Financial. Not all customers will qualify. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply.

The Great Payback: Terms and Conditions

*Offer valid from October 1, 2024 through December 31, 2024. Offer only available on select new Cat® machines listed in our Heavy Equipment Promotion page. Purchase must occur by December 31, 2024. Offer subject to machine availability. Offer is subject to credit approval by Caterpillar Financial Services Corporation for US customers, and Caterpillar Financial Services Limited for Canadian customers. Not all customers will qualify. The offered Cat Customer Value Agreement (CVA) includes 6 maintenance parts kits; S∙O∙SSM; and 36 month VisionLink® ConnectPro. The maintenance parts cover the first 3,000 hours^ (estimated 3 years) of machine utilization. Each kit contains one set of parts for regular planned maintenance under normal operating conditions. In some severe applications where maintenance parts need to be replaced more frequently, additional parts will be at customer’s expense. Offer excludes additional maintenance parts, dealer labor, wear parts, and fluids. Offer also includes a 36 month/5000 hour (whichever occurs first) Powertrain, Hydraulics and Technology Equipment Protection Plan (EPP). In some areas, EPP might be sold separately from the CVA. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply. Contact your Cat dealer for details.

Compact Equipment Offer: Terms and Conditions

Financing provided by Caterpillar Financial.
*Offer valid from October 1, 2024 through December 31, 2024. Offer only available on purchases of new mini excavators, micro excavators, skid steer loaders, and compact track loaders sold by participating Cat dealers to customers in the USA or Canada. Purchases (both machine and CVA) and machine delivery must occur by December 31, 2024. Offer subject to machine availability. Offer is subject to credit approval by Caterpillar Financial Services Corporation for US customers, and Caterpillar Financial Services Limited for Canadian customers. Not all customers will qualify. The credit $500 USD for CVA purchase can only be applied toward the purchase of a qualifying Cat Customer Value Agreement (CVA). CVA must be at least 2yr/1000hr and must include 1-year Preventative Maintenance Parts Kit, TA1 annual Inspection, signed CVA contract, and Product LinkTM. Amount of CVA credit is the same for all models and cannot exceed the price of the qualifying CVA. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply.

Privacy Policy

Users who submit a request for quote agree to receive communications from Louisiana Cat or its sales representatives.

Louisiana CAT follows CAM SPAN regulations and GDPR guidelines.

Users can manage their communications' opt-in and opt-out preferences online.

Users can request their information be removed from our database by sending an email at privacy@louisianacat.com or submitting a request online.

To view our privacy policy in full click here
