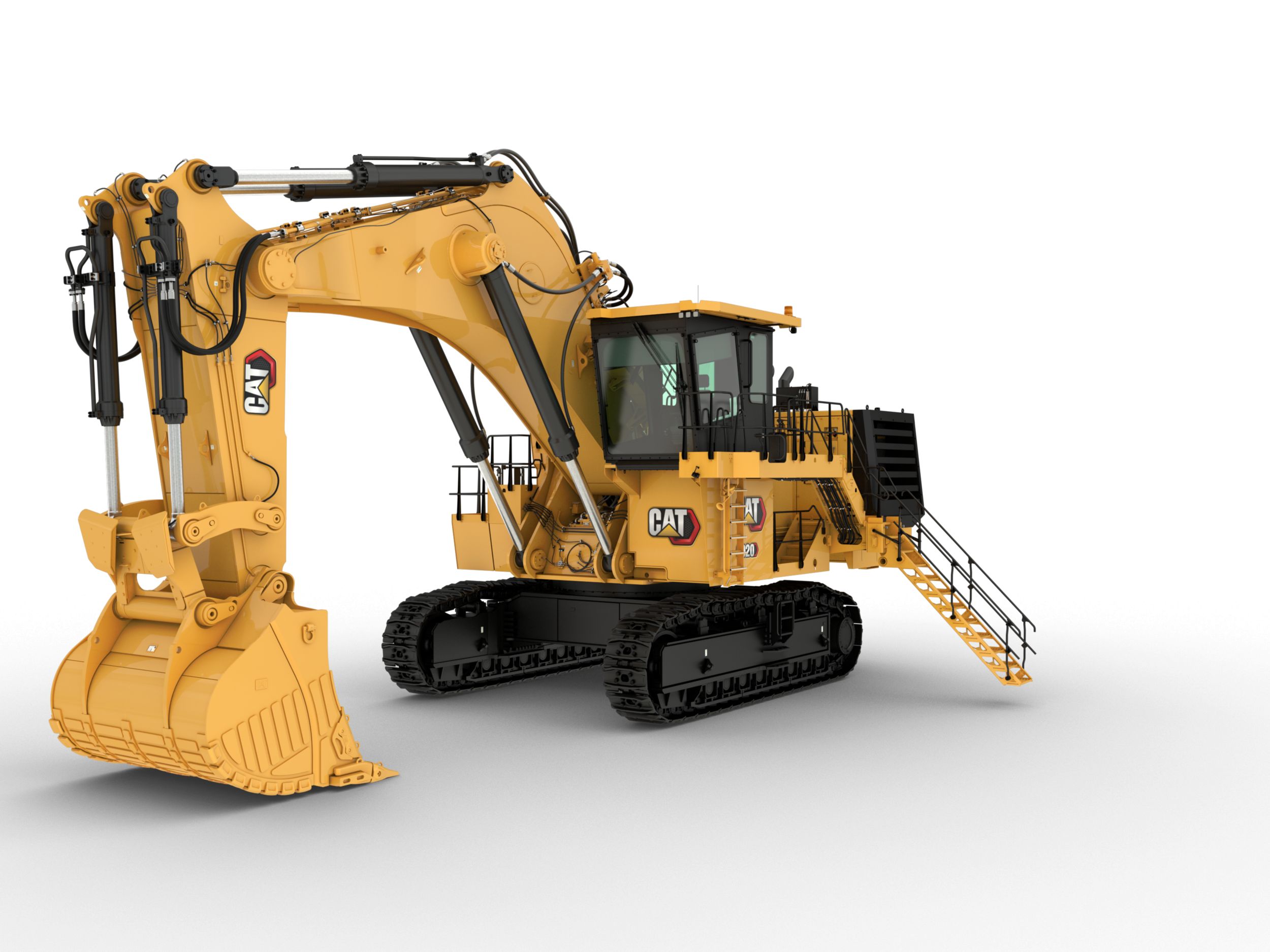

Exterior View

6020 Hydraulic Mining Shovel

When we invited our customers to help us design the first of our “Next Generation” Cat® hydraulic shovels, they gave us three top priorities: Make it safe, keep it simple and make it reliable. We responded by developing the Cat 6020, which delivers the simplicity and versatility you desire, with valuable modern design features that set it apart from the competition.

The 6020 offers class-leading visibility and a cab designed for comfort, safety and efficiency. A walk-through and exchangeable power module contributes to easier serviceability. The 6020 is 25% more fuel efficient than other shovels in its class, delivering efficiency and cost advantages. And its new C32B engine meets emission standards without the need for DEF, saving time and cost during maintenance.

Engine Output – SAE J1995
1040hp
Bucket Payload
23.8ton (US)
Operating Weight
253.8ton (US)
Note
Specifications shown above apply to a Backhoe configuration. A frontless configuration is also available.
Standard Bucket Capacity
15.7yd³
Components (8)
Windshield with parallel intermittent wiper/washer
New BCS Features (4)
Fault memory capabilities
Components (11)
Additional emergency ladder in close proximity to emergency escape window
Components (4)
Joystick integrated in adjustable seat armrest
New BCS Features (2)
On-screen troubleshooting assistance
Components (5)
Full sized trainer seat with safety belt and work table
New BCS Features (3)
Graphical data logging
Components (3)
Safety switch in operator’s seat for automatic motion shutdown
Operator’s Eye Level (approximate)
18.04ft
Internal Dimensions of Cab – Height
6.79ft
Internal Dimensions of Cab – Width
5.33ft
Components (6)
Auxiliary fold-away seat with safety belt for 3rd person
Internal Dimensions of Cab – Length
7.32ft
New BCS Features (5)
USB, Lan (TCP/IP) and CAN BUS interfaces for data export
Components (10)
Machine access via retractable access stairway, stairway angle approximately 45°, hydraulically operated
Components (1)
Large cab floor window with removable grating for easy cleaning
Components (2)
Pneumatically cushioned and multi-adjustable operator seat with lumbar support, safety belt, head- and armrests
New Board Control System (BCS) Features:
Electronic monitoring, data logging and diagnostic system for vital signs & service data of engines, hydraulic & lube system
New BCS Features (1)
Robust instrument panel including large (254 mm/10 in) color touch screen
Components (9)
Roller blinds
Components (7)
Operator Protective Guard (rock guard; approved according to ISO 10262:1998 [Top Guard]) compliant
Components (5)
7 LED service lights
Batteries (12V each)
6 × 210 Ah
Components (2)
Additional ground-level emergency stop
Components (4)
2 LED high-brightness access flood lights
Components (1)
Emergency stop buttons inside cab, accessible from all seating locations, and engine module
Battery Isolation Relays
manual lockable disconnect switch and automatic disconnect relay
Batteries (12V each) – In Series/Parallel Installation
630 Ah – 24V
Components (3)
System Voltage
24V
Components (6)
1 beacon lamp on cab roof
Electronic Pump Management Contains (4)
Automatic rpm reduction of engine speed during working breaks
Features (1)
Pressure cut-off function for all main pumps
Filters (4)
Pressure filters (6 μm) for servo circuit
Features (2)
Cooling of pump transmission gear oil
Electronic Pump Management Contains (1)
Electronic load limit control
Maximum Pressure – Swing – Acceleration
4495psi
Maximum Swing Oil Flow
216gal/min
Maximum Pressure – Swing – Deceleration
5080psi
Maximum Pressure – Travel
4495psi
Electronic Pump Management Contains (3)
Automatic return of main pumps to zero flow
Maximum Pressure – Attachment
4495psi
Hydraulic Tank Capacity
740gal (US)
Main Pumps
6 × variable swash plate pumps
Filters (3)
Full-flow filters (10 μm) for cooling return circuit
Electronic Pump Management Contains (2)
Dedicated circuit pump allocation
Filters (2)
Full-flow filters (10 μm) for complete return circuit
Maximum Total Oil Flow
621gal/min
Filters (1)
Full-flow high-pressure filters (100 μm) for main pumps, installed directly behind each pump
Filters (5)
Transmission oil filter (40 μm)
Total Volume of Hydraulic Oil
925gal (US)
Electronic Pump Management Contains (5)
Reduced oil flow of main pumps at high hydraulic oil temperature and at high engine temperature
Components (1)
Cat NOx reduction system
Alternator
275A
Components (5)
Micro processed engine management
Aspiration
Turbocharged and air-to-air aftercooled
Components (6)
Heavy-duty air filters
Components (8)
Additional high-capacity water separator including electric priming pump
Components (9)
Large fuel tank allows for 24 hour machine operation
Make and Model
Cat C32 ACERT
Components (2)
Dual Diesel Oxidation Catalysts (DOCs)
Fuel Tank Capacity
951gal (US)
Bore
5.71in
Displacement
1959in³
Stroke
6.38in
No. of Cylinders
12
Rated Speed
1,800 min-1 (1,800 rpm)
Components (7)
Two-stage fuel filter
Components (3)
MEUI™-C fuel system
Components (4)
Hydraulically driven radiator fan with variable electronically controlled fan speed
Maximum Altitude without Deration
2925 m (9,600 ft) – above sea level (a.s.l.)
Features
Centralized service area accessible from ground level.
Equipped With (2)
Cat jump-start socket
Equipped With (1)
Equipped With (3)
Indicator light for hydraulic tank full
Bottom Rollers – Each Side
8
Travel Speed – 1st Stage – Maximum
0.68mile/h
Parking Brakes
Wet multiple disc brake, spring loaded/hydraulically released
Components (5)
Automatic hydraulic retarder valve to prevent overspeed on downhill travel
Travel Drives – Each Side
1 planetary transmission with 2 two-stage axial piston motors
Gradeability – Travel Drives
Approximately 54%
Components (3)
All running surfaces of sprockets, idlers, rollers and track chain links hardened
Support Rollers – Each Side
3
Maximum Tractive Force
265860lbf
Track Pads – Each Side
45
Components (1)
Forged double-grouser track pads
Components (2)
Chain links connected by hardened pins and bushings
Travel Speed – 2nd Stage – Maximum
1.49mile/h
Components (6)
Audible travel alarm
Components (4)
Fully hydraulic self-adjusting track tensioning system with accumulator
Emissions
Meets Tier 4 Final and Stage V emissions standards
Gross Power – SAE J1995
1033hp
Net Power – SAE J1349
1019hp
Net Power – ISO 9249
1024hp
Bucket Payload
24Sh Ton
Operating Weight
254ton (US)
Alternator
275A
Components (5)
Additional high-capacity water separator including electric priming pump
Components (1)
Hydraulically driven radiator fan with variable electronically controlled fan speed
Displacement
1959in³
Maximum Altitude without Deration
3622 m (11,884 ft) – above sea level (a.s.l.)
Components (3)
Heavy-duty air filters
Fuel Tank Capacity
951gal (US)
Aspiration
Turbocharged and air-to-air aftercooled
Bore
5.71in
Stroke
6.38in
Components (6)
Large fuel tank allows for 24 hour machine operation
Make and Model
Cat C32 ACERT
No. of Cylinders
12
Rated Speed
1800 min-1 (1,800 rpm)
Components (4)
Two-stage fuel filter
Components (2)
Micro processed engine management
Maximum Swing Speed
4.9r/min
Swing Drive
2 compact planetary transmissions with axial piston motors
Parking Brake
Wet multiple-disc brake, spring-loaded/hydraulically released
Swing Ring
Triple-race roller bearing with sealed internal gearing
Features (1)
Open swing circuit with auto slow down when joysticks in neutral
Features (2)
All slew ring raceways and grease tub for internal gearing supplied by automatic, central lubrication system
Engine Model
Cat C32 ACERT
Net Power – SAE J1349
1032hp
Gross Power – SAE J1995
1040hp
Type (2)
High-tensile steel with solid steel castings at pivot areas
Buckets Equipped With
Type (5)
Float valve for boom down function
Type (3)
Boom and stick stress-relieved after welding
Type (1)
Boom and stick torsion-resistant with welded box design
Type (4)
Catwalks with rails at boom
Type (2)
Grease supplied to swing roller bearing, all pivot points of attachment, and swing gearbox bearing
Capacity – Grease Barrel
54gal (US)
Type (3)
System condition and failures displayed by Board Control System
Type (1)
Single-circuit progressive system with hydraulically driven heavy-duty pump and electronic time control
Features (1)
Cooling system fully independent of all main circuits, i.e. controlled cooling capacity available whenever engine is running
Features (3)
Superior cooling efficiency to ensure optimum oil temperature
Oil Flow of Cooling Pumps
211gal/min
Diameter – Fan
4.92ft
Features (2)
Variable electronically controlled flow of oil through cooler and fan speed
Ground Pressure
31.9psi
Operating Weight
507500lb
Standard Track Pads
2.62ft
Net Power – SAE J1349
1032hp
Emissions
Meets China Nonroad Stage III emissions standards, equivalent to Tier 2
Gross Power – SAE J1995
1040hp
Net Power – ISO 9249
1037hp
Engine Model
Cat® C32 ACERT™
Net Power – SAE J1349
1019hp
Gross Power – SAE J1995
1033hp
Maximum Digging Reach
52.17ft
Maximum Digging Depth
26.57ft
Maximum Digging Height
45.6ft
Standard Bucket Capacity – Backhoe (Heaped 1:1)
15.7yd³
Maximum Tearout Force
146125lb
Maximum Breakout Force
164050lb
  • Cat Powertrain
    • 2 x Cat C32B engines
    • Aftertreatment system (used in Tier 4 Final only): – Diesel Oxidation Catalyst (DOC) – NOx Reduction System (NRS) – Non-DEF solution
    • Air-to-Air After Cooling (ATAAC)
    • Turbocharger
    • Hydraulically driven radiator fan
    • Electronically controlled fan speed
    • Micro processed engine management
    • Cat Clean Emission Module (CEM) air filters
    • Two-stage fuel filter with series filtration
    • High-capacity water seperator
    • Starting aid – automatic ether
    • Exhaust manifold and turbo heat shields
    • Dual 24 V electric starters per engine
    • Automatic engine idle shut down
    • Automatic fuel priming
  • Hydraulics
    • Pump managing system with: – Electronic load limit control – Flow on demand – Automatic zero flow regulation – Automatic engine RPM reduction – Reduced oil flow at high hydraulic oil or engine temperature
    • Pressure cut – off for main pumps
    • Cat Hydraulic Hose assemblies
    • Hydraulic Optimization
    • Cooling of pump transmission gear oil
    • Open loop swing circuit
    • Pressure testing poings
    • Full-flow high-pressure filters (100 µm), main pumps
    • Full-flow filters (10 µm), return circuit
    • Full-flow filters (10 µm), cooling return circuit
    • Pressure filters (6 µm), servo circuit
    • Transmission oil filters (40 µm)
    • Boom float valve
  • Electrical System
    • 6 batteries
    • Lockable battery isolator switch
    • Lockable starter isolator switch
    • 9 LED high-brightness working flood lights
    • 7 LED service lights
    • Travel alarm – forward and reverse
    • Electric Horn
  • Undercarriage
    • Forged double-grouser track pads
    • 800 mm (2 ft 8 in) wide track pads
    • HD fixed axle carrier and load rollers
    • Automatic hydraulic retarder valve
    • Hinged travel motor covers
    • Hardened running surfaces of sprockets, idlers, rollers, pad links, teeth contact areas
    • Fully hydraulic self-adjusting track tensioning system with piston accumulators
  • Automatic Lubrication System
    • Grease filters (200 µm)
  • Operator Environment
    • Single HVAC system
    • In-floor window with removable grate
    • Pneumatically cushioned and multiadjustable comfort seat with: – Lumbar support – Head and arm rests – Safety switch for automatic motion shutdown
    • Independently adjustable seat consoles with integrated joysticks
    • Electronic-Hydraulic Servo Control
    • Elevated full-size trainer seat with 2-point safety belt and laptop desk
    • FM/AM radio with USB and AUX input
    • Additional fold-away auxiliary seat with 2-point safety belt
    • Three cup holders
    • Parallel intermittent wiper/washer
    • Roller blinds at all windows
    • Monitoring system with 254 mm (10 in) color touchscreen
    • Cat Board Control system: – 254 mm mm (10 in) color touchscreen – On-screen troubleshooting assistance – On-screen graphic charts of logged data – Fault memory of related conditions – USB, LAN (TCP/IP) and CAN BUS interfaces for data export
    • Control and Monitoring Platform (CAMP)
    • Powered 45° access stairway
    • One mirror on Left Hand (LH) side
    • Document storage
  • Front Attachment
    • Internal service access in boom
    • Boom and stick thermally stress relieved after welding
    • Catwalks with rails at boom
    • Wear Package (as per bucket selection)
  • Cat Technology
    • Cat MineStar Solutions ready
  • Service And Maintenance
    • Engine oil exchange interval – 500 hours
    • Hydraulic oil change interval – 10,000 hours
    • S·O·SSM sampling ports
    • Cat CEM air filters with precleaner dust ejection system
    • Ground level service station with quick couplings for: – Diesel fuel – Engine coolant – Pump transmission gear oil – Engine oil – Hydraulic oil – Grease
    • Cat battery charging connector
    • Indicator lights
  • Safety And Security
    • Emergency stop switches in cab, engine module, 1 pull rope accessible from ground level
    • Operator Protective Guard (Top Guard)
    • All-round safety glass
    • Emergency egress ladder
  • Miscellaneous
    • ISO or American National Standards Institue (ANSI) decals

Coming Soon

Why Choose Louisiana Cat

We serve to build and power our community for a better future.

  • Provide a safe & meaningful work environment
  • Deliver innovative solutions through our expertise
  • Committed to the long-term growth and success of our employees and customers
  • Grow our business profitably

YOU MIGHT ALSO BE INTERESTED IN





STEP 2: MANAGE THE ITEMS IN YOUR EQUIPMENT LIST BEFORE SUBMITTING A REQUEST FOR QUOTE



Request for Quote

Clear All Items in Your Cart
Keep Shopping

Review items, Adjust Quantity, Remove Unwanted Equipment

  • Select an equipment listed in step 2 to get started

Promotional Items Associated with the Selected Equipment

The Great Payback: Low Financing Bundle Details:

The Great Payback: Bundle 1 Fuel Credit Bundle Details:

Small Excavators Big Savings Details:

Compact Equipment Offer:

Compact Equipment Offer:

One More Step

In the next and final step, which consists of the submission of your equipment list for a request for quote you'll be able to:
  • Add a specific comment for each item in your cart
  • Fill out the required information in the submission form
Submit to get a Quote

Fill out the Form

If you're not finished yet with your equipment list, you can keep adding more items. Click here to go back to the previous page.

Keep Shopping

Terms and Conditions

Small Excavators Big Savings: Terms and Conditions

* Offer valid from October 1, 2024 through December 31, 2024 on new 313 through 317 Cat® excavators sold by participating Cat dealers to customers in the USA or Canada. Purchase must occur during offer period. Offer subject to machine availability and credit approval by Cat Financial. Not all customers will qualify. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply.

The Great Payback: Terms and Conditions

*Offer valid from October 1, 2024 through December 31, 2024. Offer only available on select new Cat® machines listed in our Heavy Equipment Promotion page. Purchase must occur by December 31, 2024. Offer subject to machine availability. Offer is subject to credit approval by Caterpillar Financial Services Corporation for US customers, and Caterpillar Financial Services Limited for Canadian customers. Not all customers will qualify. The offered Cat Customer Value Agreement (CVA) includes 6 maintenance parts kits; S∙O∙SSM; and 36 month VisionLink® ConnectPro. The maintenance parts cover the first 3,000 hours^ (estimated 3 years) of machine utilization. Each kit contains one set of parts for regular planned maintenance under normal operating conditions. In some severe applications where maintenance parts need to be replaced more frequently, additional parts will be at customer’s expense. Offer excludes additional maintenance parts, dealer labor, wear parts, and fluids. Offer also includes a 36 month/5000 hour (whichever occurs first) Powertrain, Hydraulics and Technology Equipment Protection Plan (EPP). In some areas, EPP might be sold separately from the CVA. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply. Contact your Cat dealer for details.

Compact Equipment Offer: Terms and Conditions

Financing provided by Caterpillar Financial.
*Offer valid from October 1, 2024 through December 31, 2024. Offer only available on purchases of new mini excavators, micro excavators, skid steer loaders, and compact track loaders sold by participating Cat dealers to customers in the USA or Canada. Purchases (both machine and CVA) and machine delivery must occur by December 31, 2024. Offer subject to machine availability. Offer is subject to credit approval by Caterpillar Financial Services Corporation for US customers, and Caterpillar Financial Services Limited for Canadian customers. Not all customers will qualify. The credit $500 USD for CVA purchase can only be applied toward the purchase of a qualifying Cat Customer Value Agreement (CVA). CVA must be at least 2yr/1000hr and must include 1-year Preventative Maintenance Parts Kit, TA1 annual Inspection, signed CVA contract, and Product LinkTM. Amount of CVA credit is the same for all models and cannot exceed the price of the qualifying CVA. Offer may change without prior notice and cannot be combined with any other offers. Additional terms and conditions may apply.

Privacy Policy

Users who submit a request for quote agree to receive communications from Louisiana Cat or its sales representatives.

Louisiana CAT follows CAM SPAN regulations and GDPR guidelines.

Users can manage their communications' opt-in and opt-out preferences online.

Users can request their information be removed from our database by sending an email at privacy@louisianacat.com or submitting a request online.

To view our privacy policy in full click here
