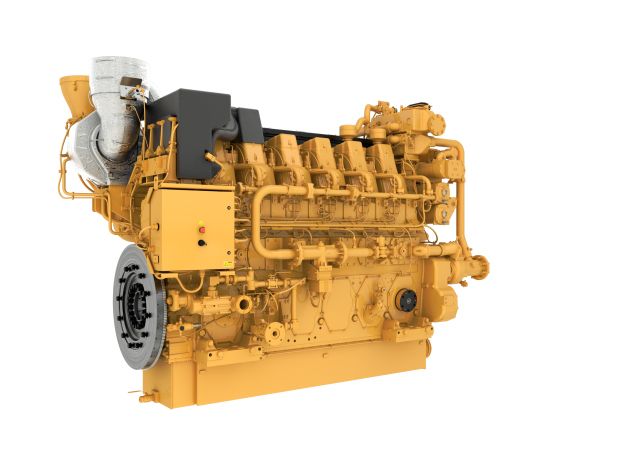

Exterior View
Maximum Rating

2065 BHP

Emissions

NSPS Site Compliant Capable

Displacement

7762 in³

G3606 A4 Gas Engine

ABOUT THE g3606 A4

G3600 ADEM™4 engines provide a wide range of power options to fit your gas compression application. G3600 ADEM™4 engines bring the highest uptime in the industry and long operating intervals between overhaul. Operators that use G3600 ADEM™4 engines in their fleet enjoy virtually no unscheduled downtime, the right power for their application, the lowest operating costs, and emissions compliance. Ideal applications for G3600 ADEM™4 engines include centralized gathering stations, gas processing, transmissions, and storage applications. Cat G3606 ADEM™4 Gen 1 gas engine with ratings: 1398 bkW (1875 bhp) @ 1000 rpm and ADEM™4 Gen 2 gas engine ratings: standard power – 1454 bKW (1950 hp) and uprate power – 1499 bKW (2010 bhp) @ 1000 rpm. NSPS site compliant capable.

Add the G3606 A4 GAS ENGINE Model to the Cart
Maximum Rating
2065BHP
Emissions
NSPS Site Compliant Capable
Displacement
7762in³
Minimum Rating
1900BHP
Compression Ratio
9.2:1 Gen 1 (7:6:1 Gen 2)
Aspiration
Turbocharged-Aftercooled
Rotation from Flywheel End
Counterclockwise
Flywheel Teeth
255
Weight – Dry
36883lb
Oil Change Interval
5000 hours
Ignition, Protection
Electronic (ADEM™ A4)
Stroke
11.8in
Bore
11.8in
Cooling System
124gal (US)
Lube Oil System – Refill
187gal (US)
  • Air Inlet System
    • Air cleaner — standard-duty inlet air adapter
  • Control System
    • A4 control system — provides electronic governing integrated with air/fuel ratio control and individual cylinder ignition timing control
    • Electrical system and instrumentation certified for Class I, Division 2, Group D hazardous location. Includes entire ADEM A4 system and optional control panel.
  • Cooling System
    • Jacket water pump
    • Jacket water thermostats and housing
    • Aftercooler/oil cooler pump
    • Aftercooler/oil cooler thermostats and housing
    • Two-stage aftercooler
    • Jacket water heater connections
    • Standard ANSI connections
  • Exhaust System
    • Dry exhaust manifolds
    • Single vertical outlet adapter
    • Stainless steel encapsulated insulation
  • Flywheels And Flywheel Housing
    • SAE standard rotation
  • Fuel System
    • Gas admission valves — electronically controlled fuel supply pressure
  • Ignition System
    • A4 control system — senses individual cylinder detonation and controls individual cylinder timing
  • Lube System
    • Crankcase breathers (top mounted)
    • Oil cooler
    • Oil filter
    • Oil pan drain valves — front and rear
  • Mounting System
    • Engine mounting feet (four total)
  • Protection
    • Electronic shutoff system with purge cycle
    • Crankcase explosion relief valves
    • Gas shutoff valve
  • Starting System
    • Air starting system
  • General
    • Paint — Cat yellow
    • Vibration dampers
  • Air Inlet System
    • Heavy-duty air cleaner with precleaners
  • Charging System
    • 35 Amp & 65 Amp charging alternators – CSA approved
  • Exhaust System
    • Flexible bellows adapters
    • Exhaust expander
    • Weld flanges
  • Fuel System
    • Fuel filter
    • Gas pressure regulator
    • Flexible connection
  • Instrumentation
    • LCD display panel
    • Remote data monitoring and speed control
    • Color HMI display
    • Compatible with Cat® Electronic Technician (ET) and Data View
    • Modbus and Ethernet capable
  • Lube System
    • Air or electric motor-driven prelube
    • Duplex oil filter
    • RH Service
    • Lube oil makeup system
  • Mounting System
    • Mounting plates (set of four)
    • Extra mounting feet (set of two)
    • Extra mounting plates (set of two)
  • Power Take-offs
    • Front stub shafts
  • Starting System
    • Air pressure reducing valve
  • General
    • Engine barring device
    • Damper guard
